Balun
A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

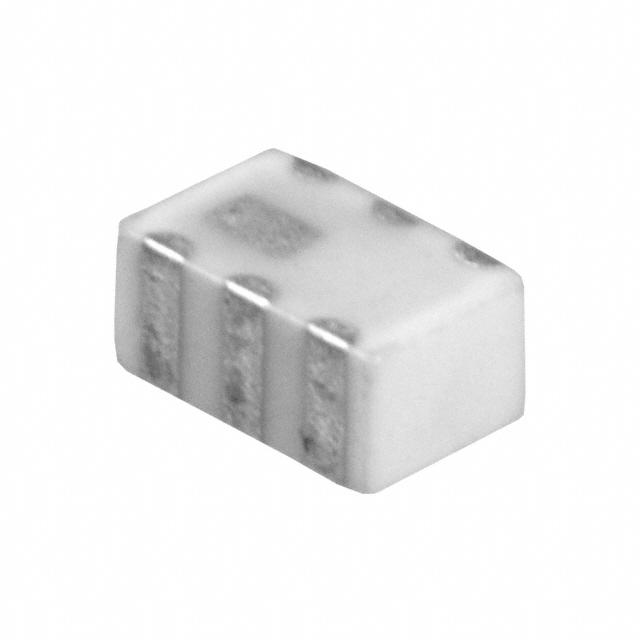

HHM1520A2
|
TDK Corporation | BALUN 2.3GHZ-2.5GHZ 50/100 0805 | 763 | $0.41 | |
LDB182G4510C-110
|
Murata Electronics | BALUN 2.4GHZ-2.5GHZ 50/100 0603 | 580 | $0.00 | |
HHM1726N1
|
TDK Corporation | BALUN 824MHZ-915MHZ 50/100 0603 | 398 | $0.00 | |
CX2041NL
|
Pulse Electronics Network | BALUN 50KHZ-450MHZ 75/75 5SMD | 927 | $2.70 | |
MABA-010441-CT38A0
|
M/A-Com Technology Solutions | BALUN 5MHZ-1.2GHZ 50/75 4SMD MOD | 0 | $0.00 | |
BD0205F5050AHF
|
Anaren | BALUN 70MHZ-1GHZ 50/50 1608 | 364 | $0.00 | |
CX2045LNLT
|
Pulse Electronics Network | BALUN 3MHZ-300MHZ 5SMD | 1541 | $0.00 | |
|
CX2049LANLT
|
Pulse Electronics Network | BALUN 250KHZ-500MHZ 5SMD | 1771 | $0.00 | |
CX2039LNL
|
Pulse Electronics Network | BALUN 4.5MHZ-1.5GHZ 50/50 5SMD | 990 | $3.10 | |
|
CX2049LNL
|
Pulse Electronics Network | BALUN 250KHZ-500MHZ 5SMD MODULE | 2059 | $3.10 |
