Balun
A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
ATB2012E-75011M-T01
|
TDK Corporation | BALUN 400MHZ-1.8GHZ 75/75 0805 | 0 | $0.26 | |
2450BM07A0004T
|
Johanson Technology Inc. | BALUN MATCHED EIA0402 | 0 | $0.26 | |
TTB12G51-900-2P-T20
|
TDK Corporation | BALUN 174MHZ-860MHZ 50/50 4SMD | 0 | $0.23 | |
ATB2012-75011-TL000
|
TDK Corporation | BALUN 50MHZ-1.2GHZ 75/75 0805 | 0 | $0.23 | |
3700BL15B100E
|
Johanson Technology Inc. | BALUN 3.4GHZ-4GHZ 50/100 0805 | 0 | $0.26 | |
BAL-WILC10-01D3
|
STMicroelectronics | BALUN 2.4GHZ-2.5GHZ 50/50 OHM | 0 | $0.22 | |
|
BLF2012LM37R2400A
|
Yageo | BALUN 2.4GHZ-2.5GHZ 0805 | 0 | $0.22 | |

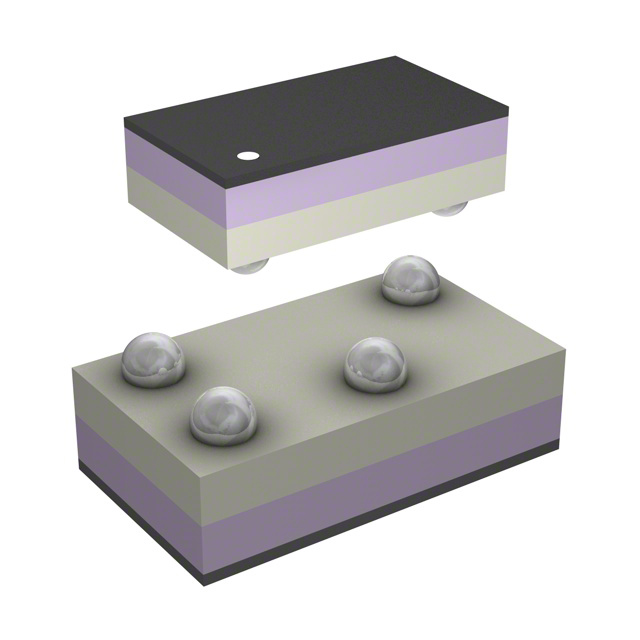

BALF-2690-02D3
|
STMicroelectronics | BALUN 2.4GHZ-2.5GHZ 4UFBGA FCBGA | 0 | $0.00 | |
HHM1541E1
|
TDK Corporation | BALUN 2.3GHZ-2.5GHZ 50/75 0805 | 0 | $0.00 | |
|
B0922A21HF
|
Anaren | IC TRANSFORMER BALUN SMD | 0 | $0.19 |
