Full Half-Bridge Drivers
Devices in the bridge driver PMIC (Power Management Integrated Circuit) family incorporate two or more power transistors along with circuitry required to operate them as switches under the control of an external device. The transistors are typically configured internally in series-connected pairs known as half-bridges, such that the junction between any given pair can be connected to either of two power supply rails. They are commonly used to translate low-level signals provided by a control device such as a microcontroller into the higher power signals required to operate an actuator such as a stepper or brushless motor.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

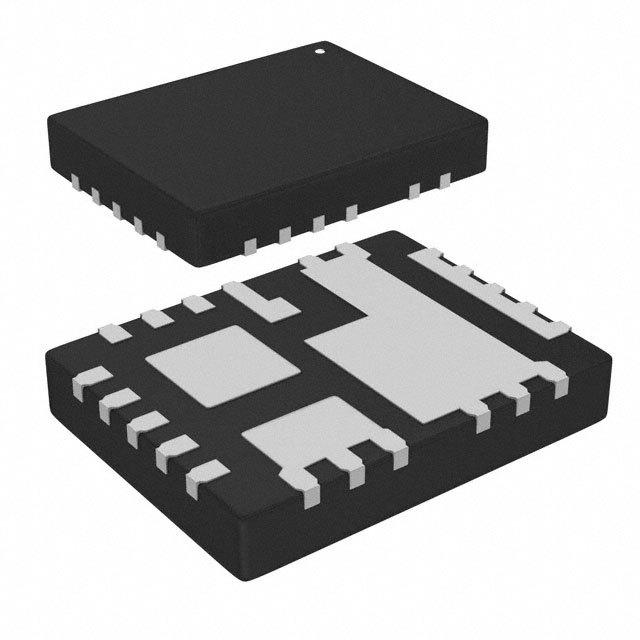

FDMF3039
|
ON Semiconductor | IC HALF-BRIDGE DRVR PWM 22PQFN | 0 | $0.00 | |
LB1863M-TLM-H
|
ON Semiconductor | IC MOTOR DRIVER ON/OFF 14MFP | 0 | $0.90 | |
FDMF6824C
|
ON Semiconductor | MOD DRMOS HIGH PERF 40QFN | 0 | $0.00 | |
LA6584M-TLM-E
|
ON Semiconductor | IC BRIDGE DRIVER ON/OFF MFP16FS | 0 | $0.88 | |
LA6597FMC-AH
|
ON Semiconductor | IC MOTOR DRIVER ON/OFF 10SOIC | 0 | $0.83 | |
M81706AFP
|
Powerex, Inc. | HVIC DRVR HB 600V 120-250MA 8SOP | 0 | $0.78 | |
|
LA6588MC-AH
|
ON Semiconductor | IC MOTOR DRIVER ON/OFF 10MFPSK | 0 | $0.00 | |
BD6883GUL-E2
|
ROHM Semiconductor | IC MOTOR DRIVER PAR 52-UQFN | 0 | $0.73 | |
LB1868M-TLM-H
|
ON Semiconductor | IC MOTOR DRIVER PAR 14MFP | 0 | $0.64 | |
AN41400A-PB
|
Panasonic Electronic Components | IC MOTOR DRIVER PAR 34HSOP | 0 | $0.62 |
