Gates and Inverters - Multi-Function, Configurable
Products in the configurable logic gate family perform elementary logic operations on individual logic signals in a fashion similar to standard logic gates, but without the limitation of being constrained to one specific function such as AND, NAND, etc. They are commonly implemented using a small number of logic gates internally, selected and interconnected to allow the overall logic function that is realized to be configured by the choice of which among several inputs the operating data is applied to, and the logic state to which any unused inputs are driven.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
SN74LVC1G97DBVT
|
Texas Instruments | IC MULTI-FUNC GTE CONFIG SOT23-6 | 1285 | $0.00 | |

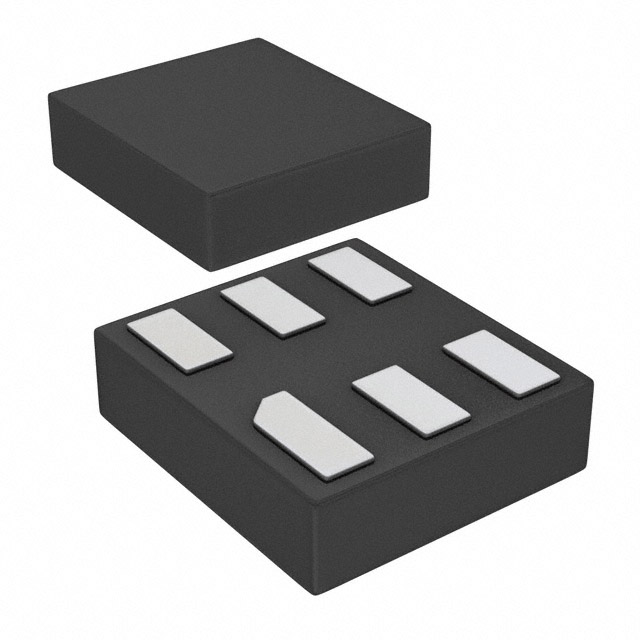

74AUP1G0832GM,115
|
Nexperia USA Inc. | IC GATE AND/OR 3-IN 6-XSON | 11429 | $0.00 | |
74AUP1G58GW,125
|
Nexperia USA Inc. | IC CONFIG MULTI-FUNC GATE 6TSSOP | 5923 | $0.00 | |
SN74LVC1G57DRLR
|
Texas Instruments | IC CONFIG MULT FUNCTION SOT563 | 8084 | $0.00 | |
|
SN74AUP1G58DBVR
|
Texas Instruments | IC CONFIG MULT-FUNC GATE SOT23-6 | 4600 | $0.00 | |
NC7SZ58L6X
|
ON Semiconductor | IC LOGIC GATE UHS 2-INP 6-MCRPAK | 22550 | $0.00 | |
74AUP2G3404FW3-7
|
Diodes Incorporated | AUP 2 GATES X2-DFN0910-6 | 10168 | $0.00 | |
NL7SZ58DFT2G
|
ON Semiconductor | IC GATE MULTIFUNCT CONF SC-88 | 20338 | $0.00 | |
MC100LVEP05DTG
|
ON Semiconductor | IC GATE AND/NAND ECL 2INP 8TSSOP | 111 | $8.57 | |
|
MC100EP01DTG
|
ON Semiconductor | IC GATE OR/NOR ECL 4INPUT 8TSSOP | 277 | $7.74 |
