Crystals

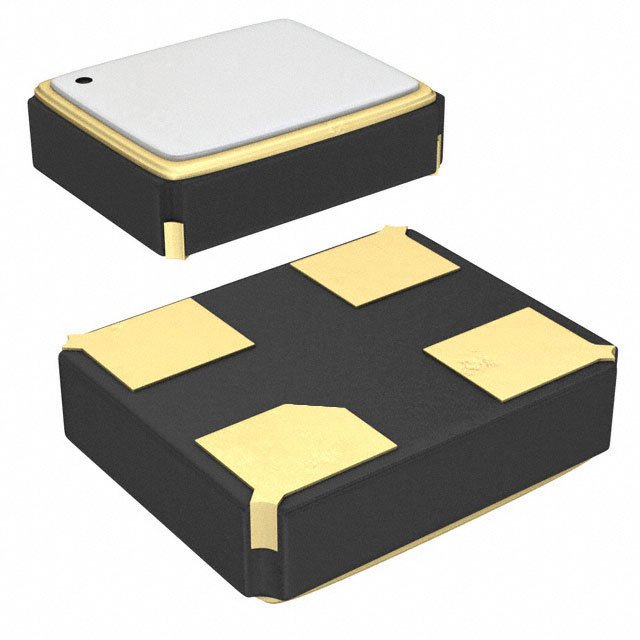

Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
ABM11W-50.0000MHZ-4-D1X-T3
|
Abracon LLC. | CRYSTAL 50.0000MHZ 4PF SMD | 2735 | $0.00 | |
8Y-20.000MAHE-T
|
TXC Corporation | CRYSTAL 20.000MHZ 12PF SMT | 0 | $0.51 | |
|
8Y-30.000MAHV-T
|
TXC Corporation | CRYSTAL 30.000MHZ 8PF SMT | 0 | $0.00 | |
7M-13.000MAAJ-T
|
TXC Corporation | CRYSTAL 13.0000MHZ 18PF SMD | 2281 | $1.00 | |
|
7M-28.63636MAHE-T
|
TXC Corporation | CRYSTAL 28.63636MHZ 12PF SMD | 2285 | $0.00 | |
405C35E24M00000
|
CTS-Frequency Controls | CRYSTAL 24.0000MHZ 20PF SMD | 1792 | $0.00 | |
ABM11W-101-32.0000MHZ-T3
|
Abracon LLC. | IOT 32MHZ 8PF XTAL | 0 | $0.51 | |
|
405I35D18M43200
|
CTS-Frequency Controls | CRYSTAL 18.4320MHZ 18PF SMD | 1000 | $0.53 | |
ABM11-25.000MHZ-16-R150-D-T
|
Abracon LLC. | CRYSTAL 25.000MHZ 16PF SMD | 8551 | $1.68 | |
ECS-143-20-5PVX
|
ECS Inc. | CRYSTAL 14.31818MHZ 20PF SMD | 0 | $0.00 |
