Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

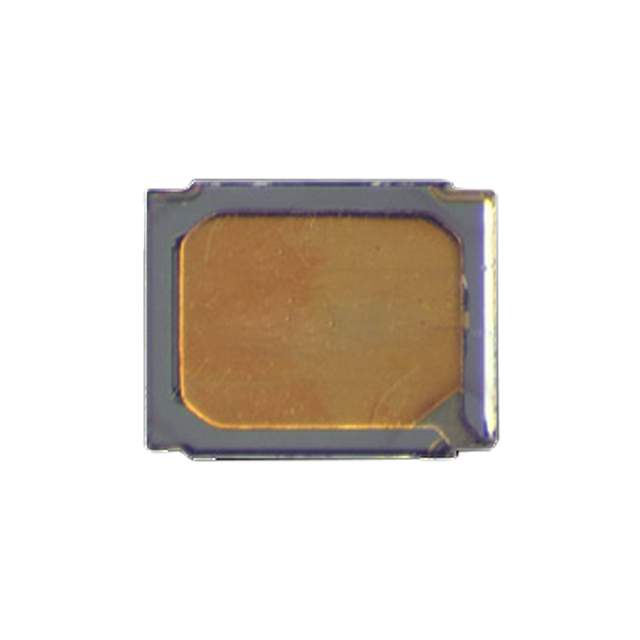

4P080F33CDT
|
CTS-Frequency Controls | CRYSTAL 8.000000 MHZ | 0 | $0.00 | |
FC7BSCCMF-8.000-T1
|
Fox Electronics | CRYSTAL 8.0000MHZ 20PF SMD | 0 | $0.00 | |
ABS04W-32.768KHZ-4-B1-T5
|
Abracon LLC. | CRYSTAL 32.768KHZ 4PF SMD | 0 | $0.00 | |
NX2016AB-26MHZ ST1
|
NDK America, Inc. | CRYSTAL 26.0000MHZ 8PF SMD | 0 | $0.00 | |
|
NX2016AB-40MHZ SW2W
|
NDK America, Inc. | CRYSTAL 40.0000MHZ 7PF SMD | 0 | $0.00 | |
|
NX2016AB-40MHZ SW2
|
NDK America, Inc. | CRYSTAL 40.0000MHZ 7PF SMD | 0 | $0.00 | |
|
NX2016AB-38.4MHZ SWW
|
NDK America, Inc. | CRYSTAL 38.4000MHZ 7PF SMD | 0 | $0.00 | |
|
NX2016AB-38.4MHZ SW1
|
NDK America, Inc. | CRYSTAL 38.4000MHZ 7PF SMD | 0 | $0.00 | |
|
NX2016AB-26MHZ SB2
|
NDK America, Inc. | CRYSTAL 26.0000MHZ 7PF SMD | 0 | $0.00 | |
|
NX2016AB-26MHZ SB1
|
NDK America, Inc. | CRYSTAL 26.0000MHZ 7PF SMD | 0 | $0.00 |
