Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

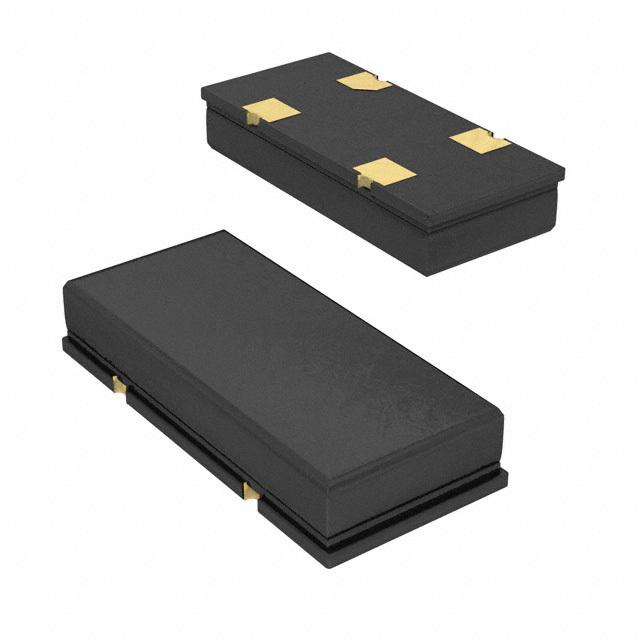

ECS-80-20-20A-TR
|
ECS Inc. | CRYSTAL 8.0000MHZ 20PF SMD | 7000 | $1.60 | |

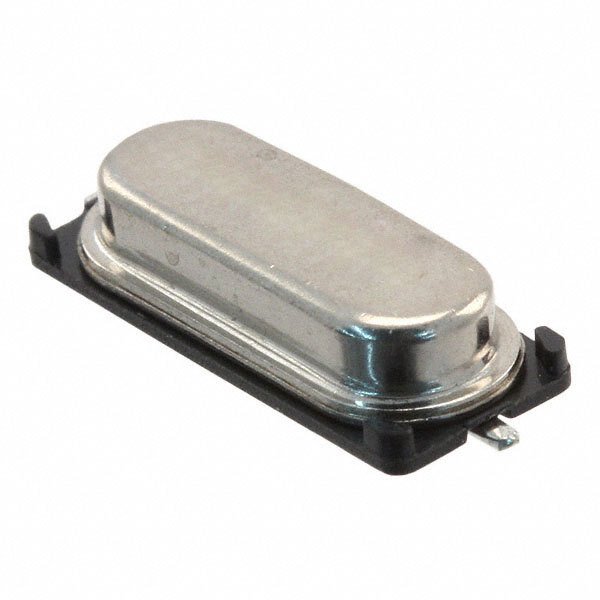

ECS-73-20-19A-TR
|
ECS Inc. | CRYSTAL 7.3728MHZ 20PF SMD | 10586 | $0.00 | |
|

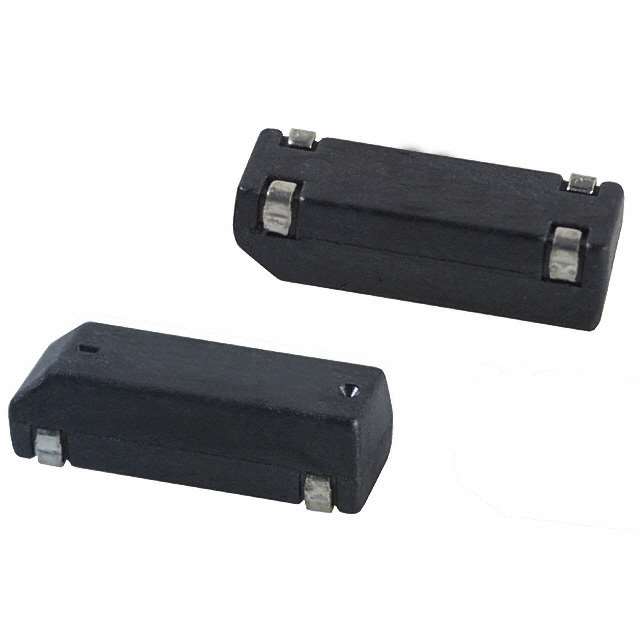

ECS-110.5-20-20A-TR
|
ECS Inc. | CRYSTAL 11.0592MHZ 20PF SMD | 1578 | $2.60 | |

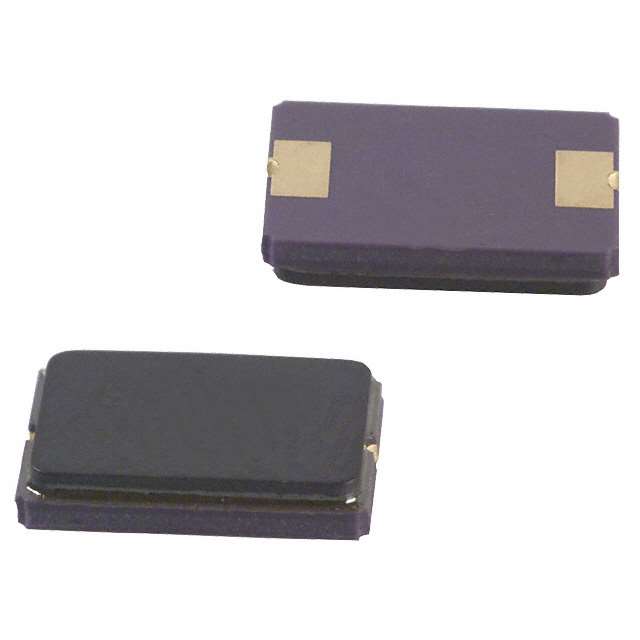

ECS-35-18-5PVX
|
ECS Inc. | CRYSTAL 3.579545MHZ 18PF SMD | 1733 | $0.00 | |
ECS-40-S-7SX-TR
|
ECS Inc. | CRYSTAL 4.0000MHZ SERIES SMD | 1000 | $1.11 | |
|
ECS-184-S-7SX-TR
|
ECS Inc. | CRYSTAL 18.4320MHZ SERIES SMD | 2024 | $0.00 | |
ECS-100-20-7SX-TR
|
ECS Inc. | CRYSTAL 10.0000MHZ 20PF SMD | 1544 | $1.86 | |
|
ECS-49-20-7S-TR
|
ECS Inc. | CRYSTAL 4.9152MHZ 20PF SMD | 1305 | $0.00 | |
ECS-147.4-18-18-TR
|
ECS Inc. | CRYSTAL 14.7456MHZ 18PF SMD | 1000 | $1.17 | |
|
ECS-110.5-S-7SX-TR
|
ECS Inc. | CRYSTAL 11.0592MHZ SERIES SMD | 1014 | $0.00 |
