Crystals
Crystal products are passive components most commonly used as time or frequency references in electronic systems. Consisting of a piezoelectric crystal that mechanically vibrates at a known frequency, their use requires provision of an external oscillator circuit with carefully designed capacitance, drive voltage, and series resistance characteristics, to generate a signal at the indicated crystal frequency that operates successfully over the operating temperature range, without damaging the crystal element. Active devices which integrate this additional necessary circuitry are considered oscillators and are catalogued separately.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

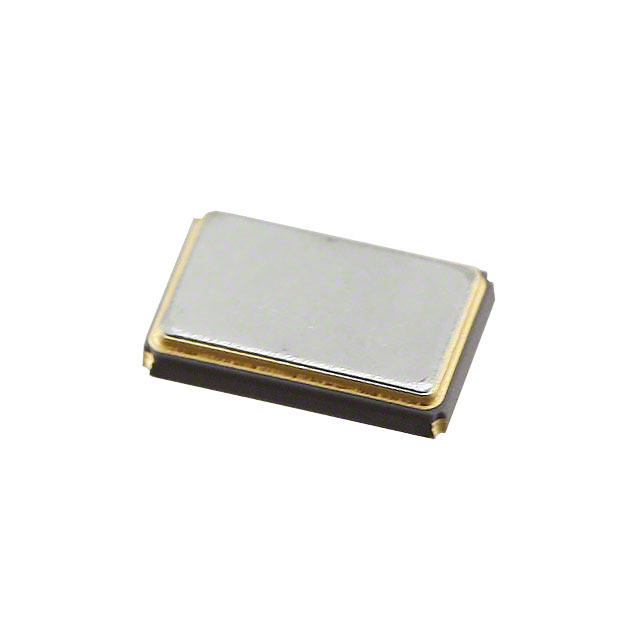

NX3225GA-10.000M-STD-CRG-1
|
NDK America, Inc. | CRYSTAL 10.0000MHZ 8PF SMD | 0 | $0.00 | |
|
NX3225GA-24.576M-STD-CRG-2
|
NDK America, Inc. | CRYSTAL 24.5760MHZ 8PF SMD | 0 | $0.00 | |
FC7ASBBMD20.0-BULK
|
Fox Electronics | CRYSTAL 20MHZ 20PF SMD | 0 | $7.14 | |
7BA1200001
|
TXC Corporation | CRYSTAL 112MHZ SERIES SMD | 0 | $4.69 | |
XM-1-018.432M
|
Connor-Winfield | CRYSTAL 18.4320MHZ 16PF SMD | 0 | $0.00 | |
8QA8070001
|
TXC Corporation | CRYSTAL 180MHZ 10PF SMD | 0 | $3.75 | |
FS-555 418.0000MB
|
Epson | SAW RESONATOR | 0 | $3.60 | |
|
FS-555 303.8750MB
|
Epson | SAW RESONATOR | 0 | $3.60 | |
|
FS-555 308.0000MB
|
Epson | SAW RESONATOR | 0 | $3.60 | |
ABM3X-101-24.000MHZ-T
|
Abracon LLC. | CRYSTAL 24.0000MHZ 10PF SMD | 0 | $3.44 |
