Backplanes
Backplanes are boards with a series of connectors attached to them in parallel. They are often located on the rear of a card rack allowing connection for other boards or devices to be inserted into the connectors. The number of channels range from 2 to 21 with interface options such as CompactPCI, Standard Bus, Uncommitted, VME J1, VME J1/J2, and VME J1/J2/J0.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

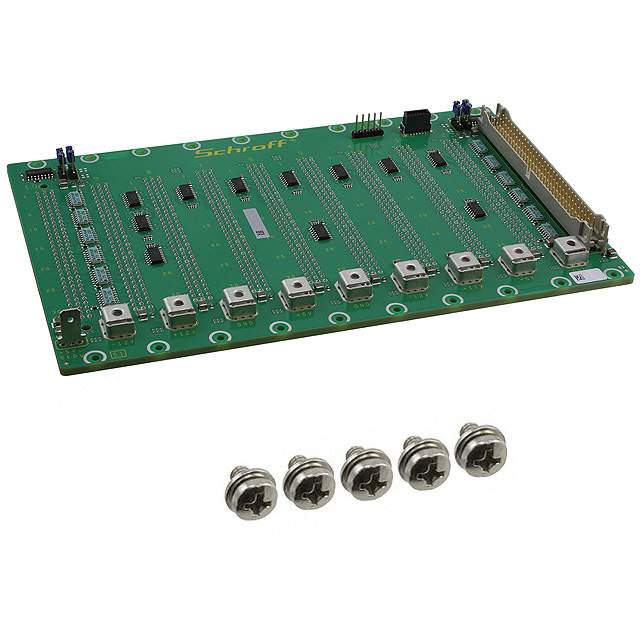

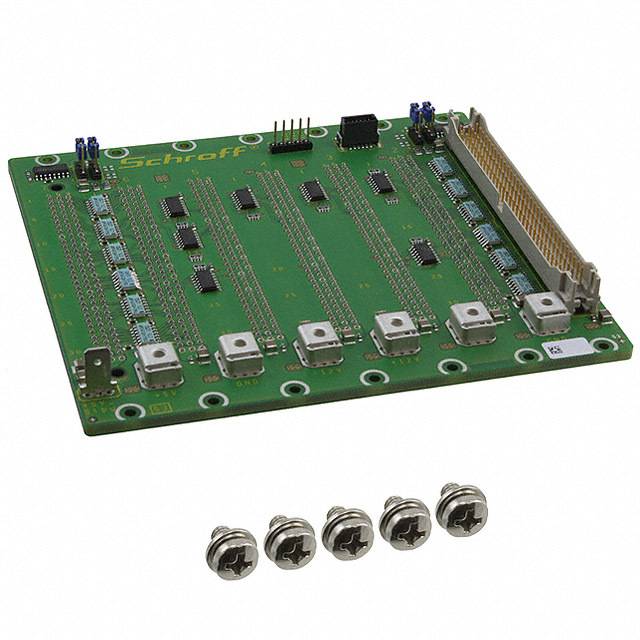

23001007
|
Schroff | BACKPLANE 3U 7 CHAN VME J1 | 0 | $302.97 | |

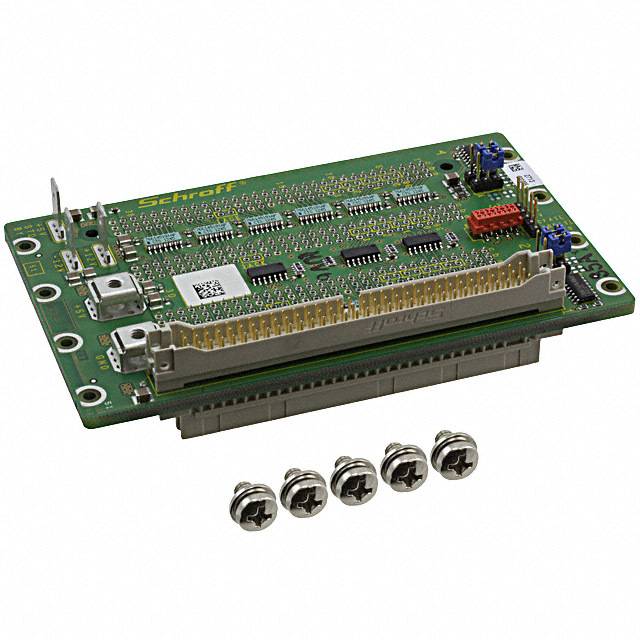

23001004
|
Schroff | BACKPLANE 3U 4 CHAN VME J1 | 1 | $298.61 | |

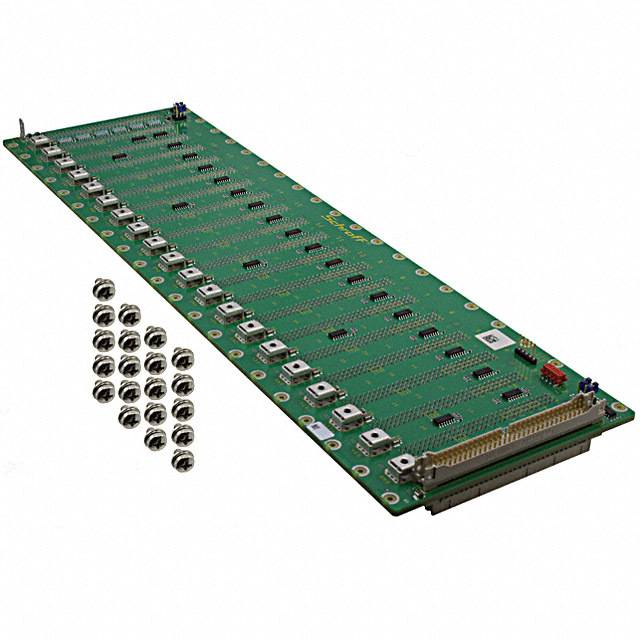

23001021
|
Schroff | BACKPLANE 3U 21 CHAN VME J1 | 2 | $1091.93 | |

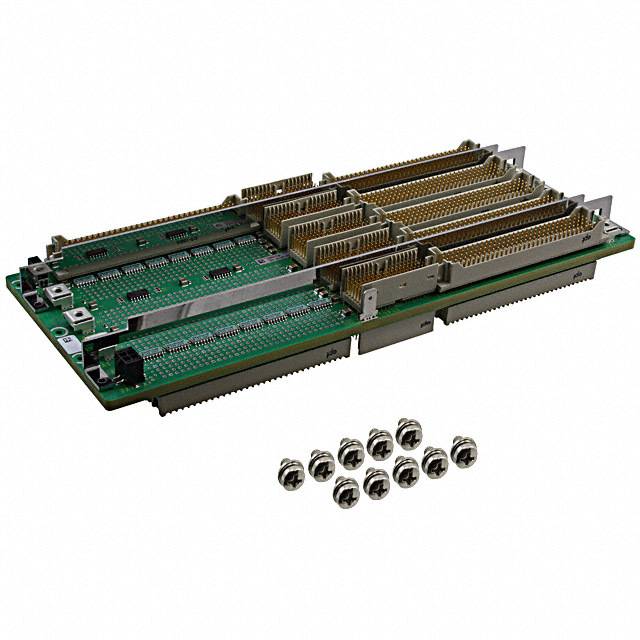

23001535
|
Schroff | BACKPLANE 6U 5 CHAN VME J1/J2 | 2 | $967.75 | |

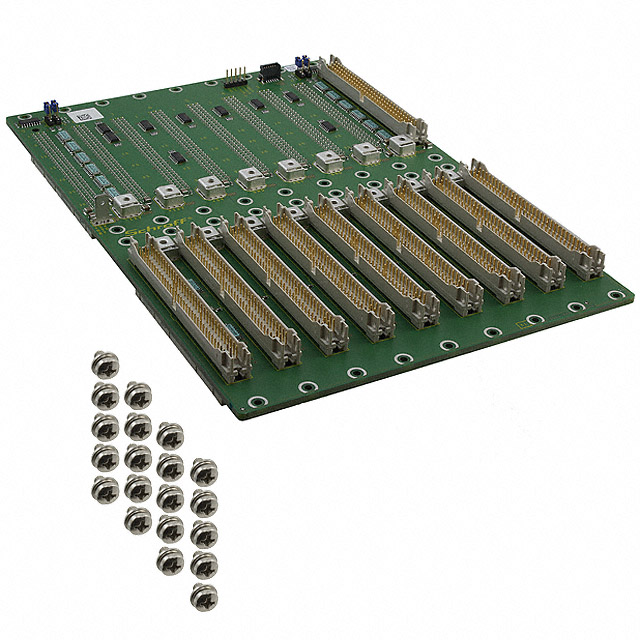

23001069
|
Schroff | BACKPLANE 6U 9 CHAN VME J1/J2 | 2 | $864.64 | |

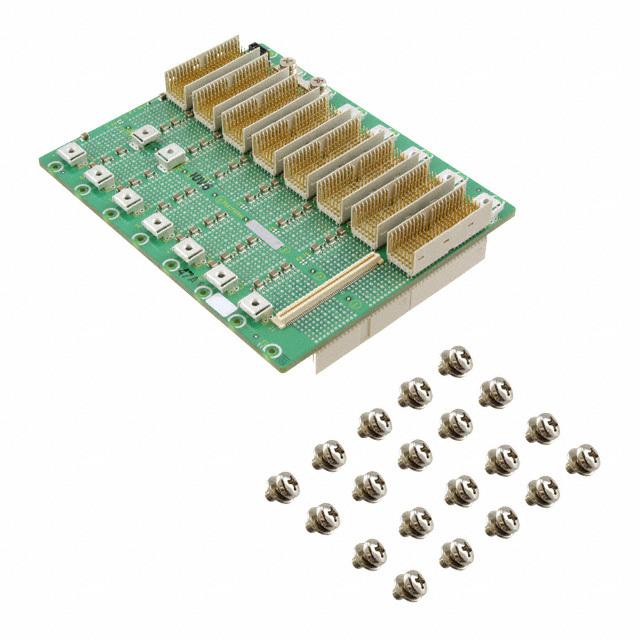

23006300
|
Schroff | BACKPLANE 3U 8 CHAN COMPACTPCI | 5 | $600.32 | |
VME64E02P01
|
Vector Electronics | BACKPLANE 6U 2 CHAN VME J1/J2/P0 | 3 | $418.60 | |
23001010
|
Schroff | BACKPLANE 3U 10 CHAN VME J1 | 5 | $398.14 | |

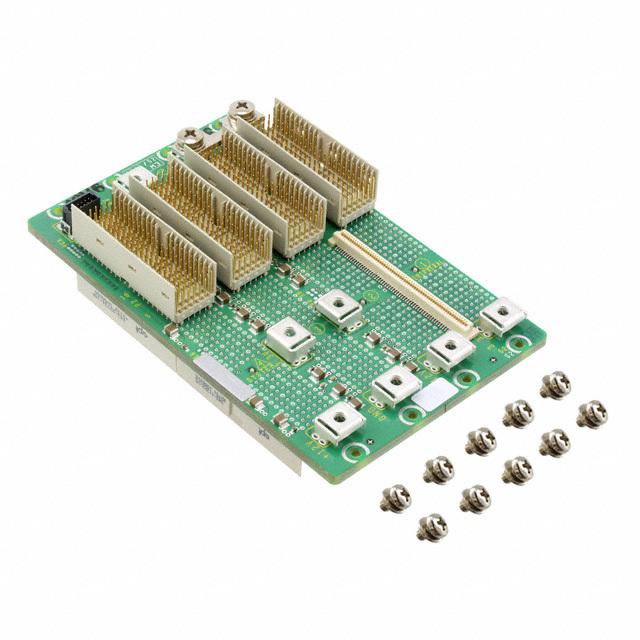

23006814
|
Schroff | BACKPLANE 3U 4 CHAN COMPACTPCI | 4 | $373.04 |
