Backplanes
Backplanes are boards with a series of connectors attached to them in parallel. They are often located on the rear of a card rack allowing connection for other boards or devices to be inserted into the connectors. The number of channels range from 2 to 21 with interface options such as CompactPCI, Standard Bus, Uncommitted, VME J1, VME J1/J2, and VME J1/J2/J0.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
VMEBP8J1
|
Vector Electronics | BACKPLANE 3U 8 CHAN VME J1/J2 | 0 | $442.75 | |
|
UM21A3U-21
|
Vector Electronics | BACKPLANE 3U 21 CHAN UNCOMMITTED | 0 | $441.87 | |

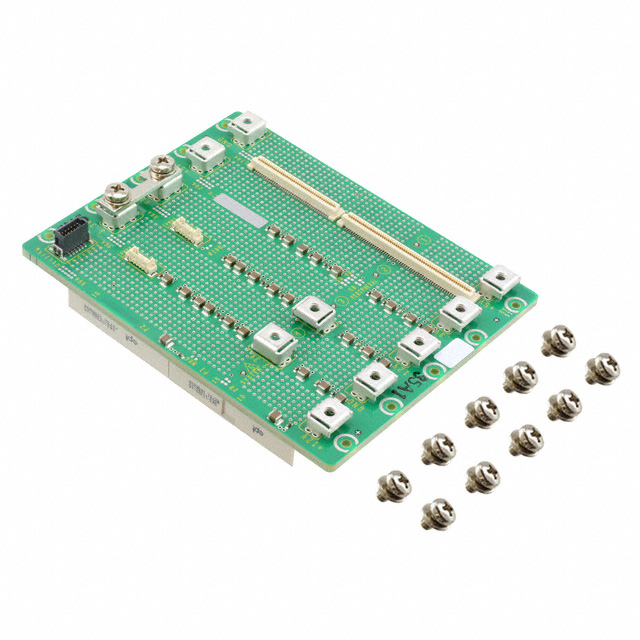

23006355
|
Schroff | BACKPLANE 3U 5 CHAN COMPACTPCI | 0 | $411.03 | |
VMEBP21J2
|
Vector Electronics | BACKPLANE 3U 21 CHAN VME J1/J2 | 0 | $404.60 | |
|
UM13B3U-22
|
Vector Electronics | BACKPLANE 3U 13 CHAN UNCOMMITTED | 0 | $403.50 | |
|
VMEBP10J1
|
Vector Electronics | BACKPLANE 3U 10 CHAN VME J1/J2 | 0 | $376.60 | |
|
VMEBP6J1
|
Vector Electronics | BACKPLANE 3U 6 CHAN VME J1/J2 | 0 | $362.88 | |

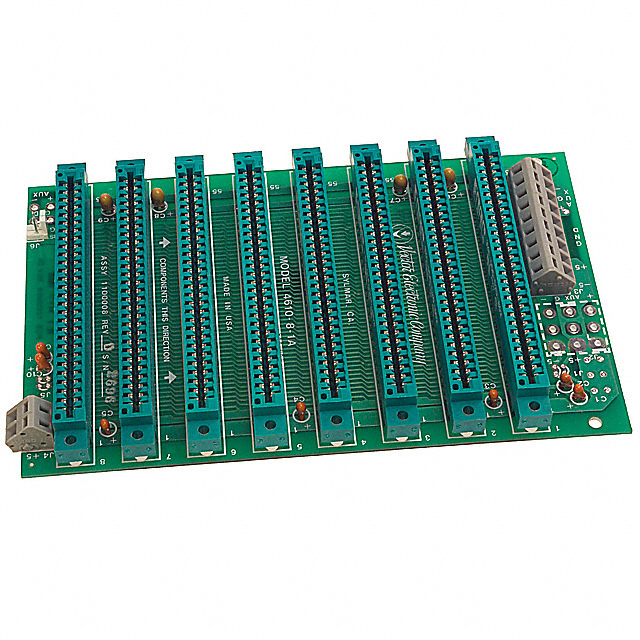

4610-16-1A
|
Vector Electronics | BACKPLANE 3U 16CHAN STANDARD BUS | 0 | $281.54 | |
4610-8-1A
|
Vector Electronics | BACKPLANE 3U 8 CHAN STANDARD BUS | 0 | $210.43 | |
|
VMEBP2J1
|
Vector Electronics | BACKPLANE 3U 2 CHAN VME J1/J2 | 0 | $159.39 |
