Single IGBTs
Single IGBTs (Insulated Gate Bipolar Transistors) are multilayered semiconductor devices with three terminals that can handle high currents and have fast switching features. They are characterized by type, collector-emitter breakdown voltage, collector current, pulsed collector current, VCE(ON), switching energy, and gate charge.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

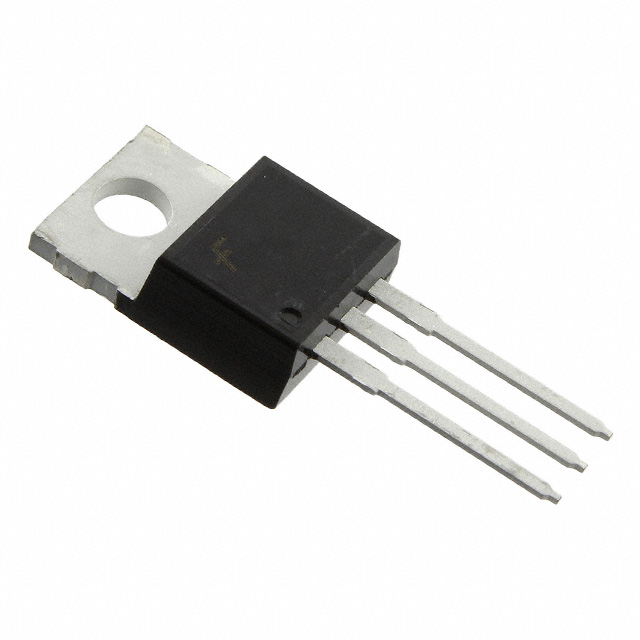

HGTP20N60A4
|
ON Semiconductor | IGBT 600V 70A 290W TO220AB | 747 | $3.14 | |
ISL9V5036P3-F085
|
ON Semiconductor | IGBT 390V 46A 250W TO220AA-3 | 1504 | $3.02 | |
IRG4BC20SPBF
|
Infineon Technologies | IGBT 600V 19A 60W TO220AB | 1997 | $2.29 | |
|
FGP3440G2-F085
|
ON Semiconductor | ECOSPARK 2 IGNITION IGBT | 1067 | $2.26 | |
|
ISL9V3040P3
|
ON Semiconductor | IGBT 430V 21A 150W TO220AB | 9525 | $2.19 | |
STGB3NC120HDT4
|
STMicroelectronics | IGBT 1200V 14A 75W D2PAK | 1062 | $0.00 | |
FGB40T65SPD-F085
|
ON Semiconductor | IGBT FIELD STOP 650V 80A D2PAK | 2398 | $0.00 | |
|
FGP20N60UFDTU
|
ON Semiconductor | IGBT 600V 40A 165W TO220 | 2100 | $1.69 | |
STGF7NB60SL
|
STMicroelectronics | IGBT 600V 15A 25W TO220FP | 1697 | $1.60 | |
NGTG15N60S1EG
|
ON Semiconductor | IGBT 600V 30A 117W TO220-3 | 2538 | $1.36 |
