Toggle Switches
Toggle switches are mechanical devices that make or break electrical connections in a circuit by the closing or opening electrical contacts when the protruding actuator is manually moved (toggled) from one position (throw) to another. Toggle switches are defined by their number of poles and throws. Pole refers to the number of separate circuits that the switch controls. A single-pole, single throw switch controls just one circuit as in a simple on/off switch that connects or disconnects two terminals. Changeover contacts are double throw.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

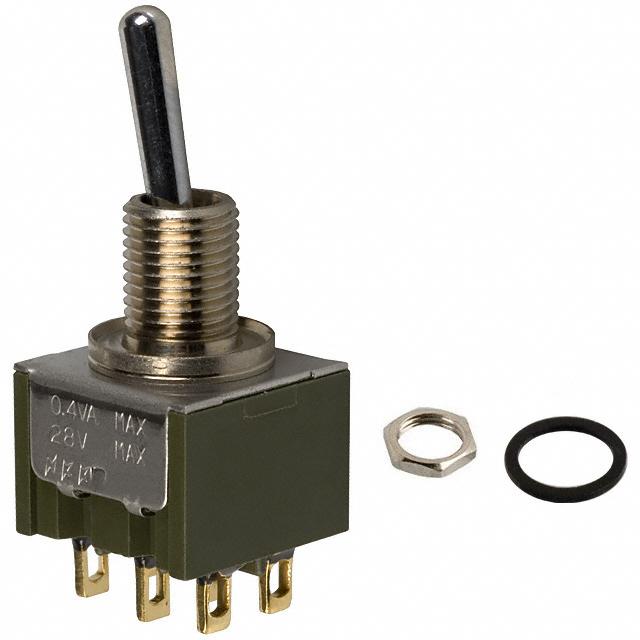

M2022SD3G01
|
NKK Switches | SWITCH TOGGLE DPDT 0.4VA 28V | 9 | $8.25 | |
8J4011-Z
|
Nidec Copal Electronics | SWITCH TOGGLE 4PDT 6A 125V | 8 | $8.23 | |
M2027B2B1W01
|
NKK Switches | SWITCH TOGGLE SP3T 6A 125V | 25 | $8.21 | |

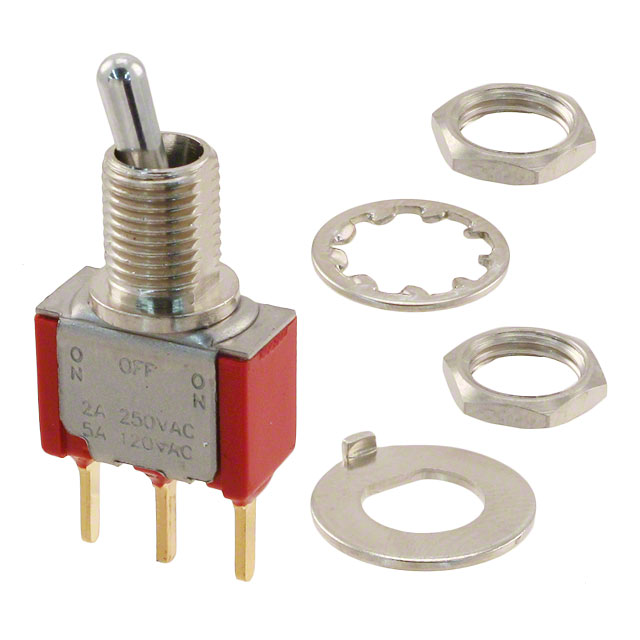

7107P3YZQE
|
C&K | SWITCH TOGGLE SPDT 5A 120V | 0 | $8.17 | |
8A2111-Z
|
Nidec Copal Electronics | SWITCH TOGGLE SP3T 6A 125V | 13 | $8.09 | |
M2022ES1G01
|
NKK Switches | SWITCH TOGGLE DPDT 0.4VA 28V | 21 | $8.06 | |

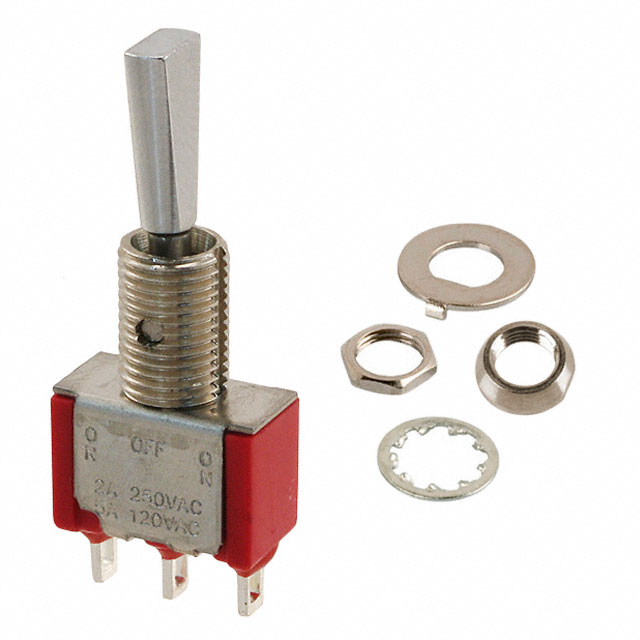

7103MHCGE
|
C&K | SWITCH TOGGLE SPDT 5A 120V | 10 | $7.79 | |
M2012B2B1G01
|
NKK Switches | SWITCH TOGGLE SPDT 0.4VA 28V | 0 | $7.76 | |

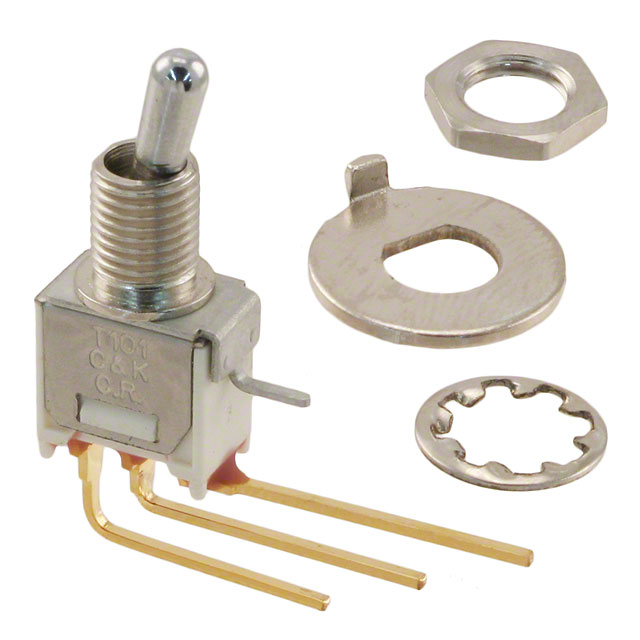

T101MHAVBE
|
C&K | SWITCH TOGGLE SPDT 0.4VA 20V | 14 | $7.68 | |

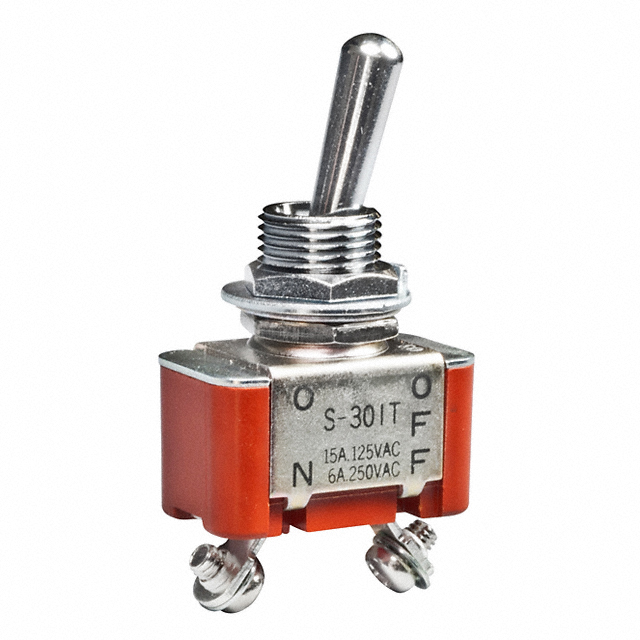

S301T/UC
|
NKK Switches | SWITCH TOGGLE SPST 15A 125V | 22 | $7.75 |
