Magnetic, Reed Switches
Magnetic reed switches are devices consisting of a pair of ferromagnetic flexible metal reed contacts in a hermetically sealed glass, magneshere, or other molded body and are operated by an applied magnetic field. The contacts are normally open, closing when a magnetic field is present, or closed and open when a magnetic field is applied. The switch may be actuated by an electromagnetic coil or permanent magnet placed near the switch. When the magnetic field is removed, the reeds return to their original position. Contact forms include SPDT and SPST.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

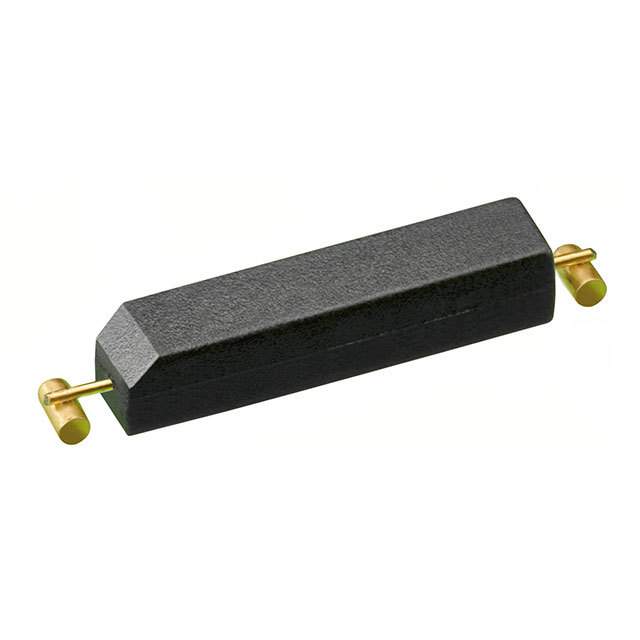

MDRR-DT-35-40-F
|
Littelfuse Inc. | SWITCH REED SPDT 180MA 120V | 922 | $4.13 | |
MDRR-DT-10-15-U
|
Littelfuse Inc. | SWITCH REED SPDT 180MA 120V | 139 | $4.06 | |
|
MDRR-DT-20-30-U
|
Littelfuse Inc. | SWITCH REED SPDT 180MA 120V | 879 | $4.06 | |
|
MDRR-DT-20-25-U
|
Littelfuse Inc. | SWITCH REED SPDT 180MA 120V | 900 | $4.06 | |
|
MDRR-DT-15-20-U
|
Littelfuse Inc. | SWITCH REED SPDT 180MA 120V | 901 | $4.06 | |

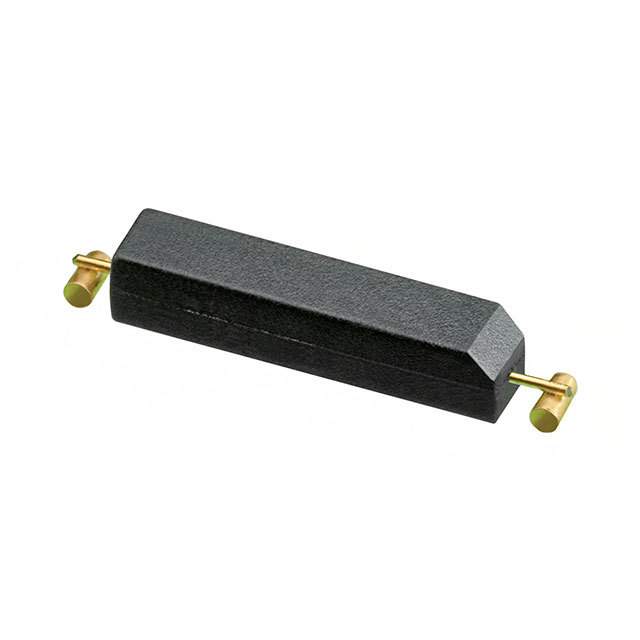

MDSM-DTB-15-20
|
Littelfuse Inc. | SWITCH REED SPDT 180MA 120V | 715 | $3.65 | |
PMC-1424THX
|
PIC GmbH | LATCHING SMD REED SWITCH | 1777 | $0.00 | |
PMC-1001THY
|
PIC GmbH | SMD NORMALLY CLOSED REED SWITCH | 1132 | $0.00 | |

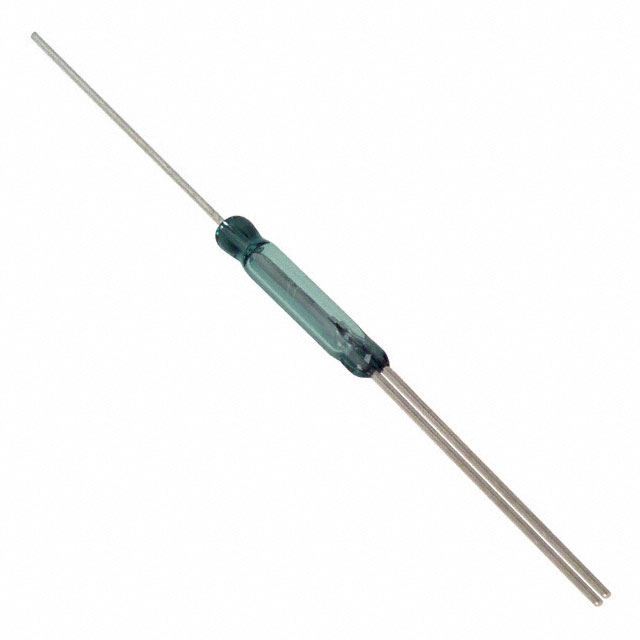

MK17-C-2
|
Standex-Meder Electronics | SWITCH REED SPST-NO 500MA 170V | 1385 | $0.00 | |
MK06-4-E
|
Standex-Meder Electronics | SWITCH REED SPST-NO 500MA 200V | 568 | $2.95 |
