Gates and Inverters
Products in the logic gate and inverter family perform elementary logical operations on individual logic signals such as AND, NOT, OR, etc. Unlike flip-flops they do not have a capacity to store information and respond immediately to the signals presented to their inputs. Though long supplanted by implementations in integrated circuit form for realizing complex functions, discrete gates remain available for use in circumstances where only very simple logical functions are needed.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
NL37WZ04USG
|
ON Semiconductor | IC INVERTER 3CH 3-INP US8 | 6746 | $0.00 | |
74LCX14MTCX
|
ON Semiconductor | IC INVERTER SCHMITT 6CH 14TSSOP | 4752 | $0.00 | |

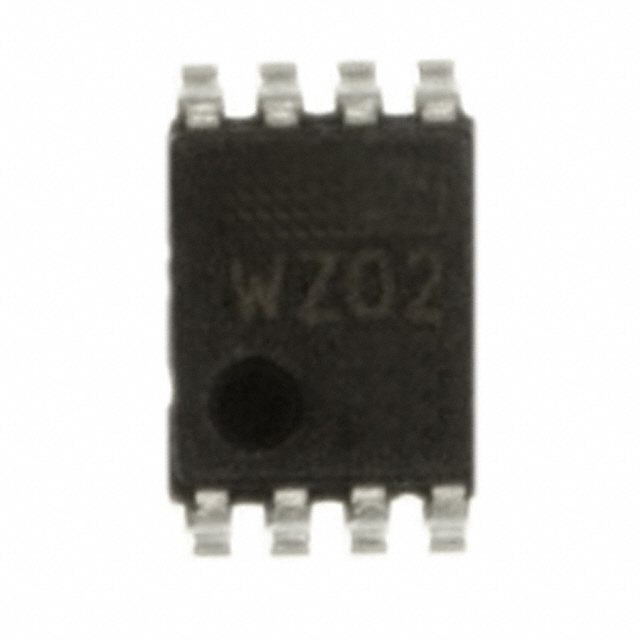

NC7WZ02K8X
|
ON Semiconductor | IC GATE NOR 2CH 2-INP US8 | 23640 | $0.00 | |
NC7NZ04K8X
|
ON Semiconductor | IC INVERTER 3CH 3-INP US8 | 25323 | $0.00 | |
SN74HC14APWR
|
Texas Instruments | IC INVERTER SCHMITT 6CH 14TSSOP | 3639 | $0.00 | |
SN74LV1T32DBVR
|
Texas Instruments | IC GATE OR 1CH 2-INP SOT23-5 | 3996 | $0.00 | |
|
SN74LV1T86DBVR
|
Texas Instruments | IC GATE XOR 1CH 2-INP SOT23-5 | 10721 | $0.00 | |
SN74LV1T86DCKR
|
Texas Instruments | IC GATE XOR 1CH 2-INP SC70-5 | 6336 | $0.00 | |
|
SN74LV1T32DCKR
|
Texas Instruments | IC GATE OR 1CH 2-INP SC70-5 | 26244 | $0.00 | |
|
CD4082BPWR
|
Texas Instruments | IC GATE AND 2CH 4-INP 14TSSOP | 3665 | $0.00 |
