Gates and Inverters
Products in the logic gate and inverter family perform elementary logical operations on individual logic signals such as AND, NOT, OR, etc. Unlike flip-flops they do not have a capacity to store information and respond immediately to the signals presented to their inputs. Though long supplanted by implementations in integrated circuit form for realizing complex functions, discrete gates remain available for use in circumstances where only very simple logical functions are needed.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
NC7SP38P5X
|
ON Semiconductor | IC GATE NAND 1CH 2-INP SC70-5 | 53287 | $0.00 | |
TC7SH32F,LJ(CT
|
Toshiba Semiconductor and Storage | IC GATE OR 1CH 2-INP SMV | 3413 | $0.00 | |
|
TC7SH86F,LJ(CT
|
Toshiba Semiconductor and Storage | IC GATE XOR 1CH 2-INP SMV | 8990 | $0.00 | |
74LVC1G332GM,115
|
Nexperia USA Inc. | IC GATE OR 1CH 3-INP 6XSON | 5000 | $0.00 | |
|
TC7SZ32F,LJ(CT
|
Toshiba Semiconductor and Storage | IC GATE OR 1CH 2-INP SMV | 12756 | $0.00 | |
74LVC1G08FW5-7
|
Diodes Incorporated | IC GATE AND 1CH 2-INP DFN1010-6 | 24598 | $0.00 | |

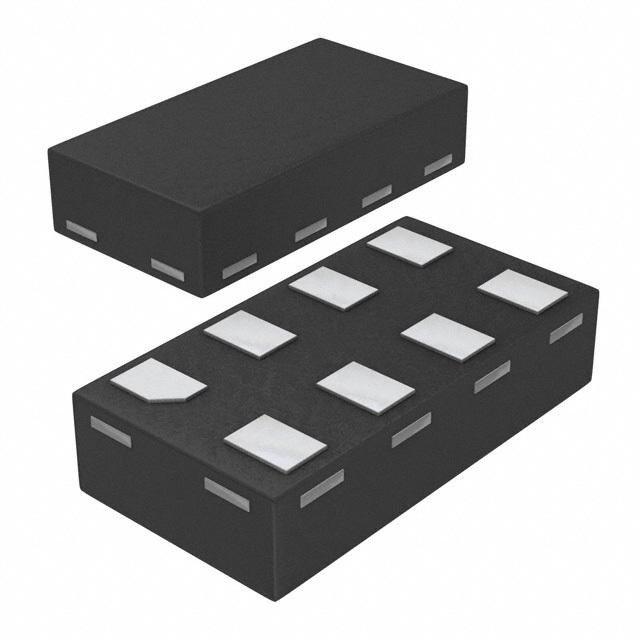

74LVC2G32HD4-7
|
Diodes Incorporated | IC GATE OR 2CH 2-INP DFN2010-8 | 10000 | $0.00 | |
|
74LVC2G02HD4-7
|
Diodes Incorporated | IC GATE NOR 2CH 2-INP DFN2010-8 | 27719 | $0.00 | |
TC7SU04FU,LF
|
Toshiba Semiconductor and Storage | IC INVERTER 1CH 1-INP USV | 5932 | $0.00 | |
|
TC7SH04F,LJ(CT
|
Toshiba Semiconductor and Storage | IC INVERTER 1CH 1-INP SMV | 3330 | $0.00 |
