Gates and Inverters
Products in the logic gate and inverter family perform elementary logical operations on individual logic signals such as AND, NOT, OR, etc. Unlike flip-flops they do not have a capacity to store information and respond immediately to the signals presented to their inputs. Though long supplanted by implementations in integrated circuit form for realizing complex functions, discrete gates remain available for use in circumstances where only very simple logical functions are needed.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
HEF40106BT,653
|
Nexperia USA Inc. | IC INVERTER SCHMITT 6CH 14SO | 6009 | $0.00 | |
SN74LVC1G86DRLR
|
Texas Instruments | IC GATE XOR 1CH 2-INP SOT5 | 12000 | $0.13 | |
SN74LV1T08DCKR
|
Texas Instruments | IC GATE AND 1CH 2-INP SC70-5 | 34350 | $0.00 | |
|
SN74AHC1G32DRLR
|
Texas Instruments | IC GATE OR 1CH 2-INP SOT5 | 6267 | $0.47 | |
MC74ACT04DR2G
|
ON Semiconductor | IC INVERTER 6CH 6-INP 14SOIC | 2500 | $0.13 | |
74HCT2G04GW,125
|
Nexperia USA Inc. | IC INVERTER 2CH 2-INP 6TSSOP | 4568 | $0.00 | |
SN74HC05DR
|
Texas Instruments | IC INVERTER 6CH 6-INP 14SOIC | 6441 | $0.49 | |

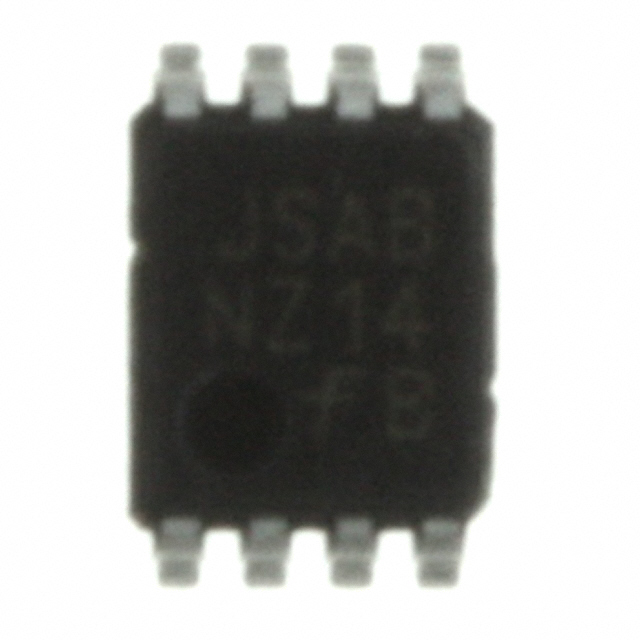

NC7NZ14K8X
|
ON Semiconductor | IC INVERTER SCHMITT 3CH US8 | 8355 | $0.00 | |
74VHC04MTCX
|
ON Semiconductor | IC INVERTER 6CH 6-INP 14TSSOP | 16293 | $0.51 | |
MC14049BDR2G
|
ON Semiconductor | IC INVERTER 6CH 6-INP 16SOIC | 87755 | $0.00 |
