Buffers, Drivers, Receivers, Transceivers
Logic buffers, drivers, receivers and transceivers allow isolated access to logic signals from one circuit for use in another circuit. Buffers pass their input signal, either unchanged or inverted, to their output and may be used to clean up a weak signal or drive a load. In a boolean logic simulator, a buffer is mainly used to increase propagation delay. Logic receivers and transceivers allow isolated communication between data buses.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
74AHC2G125DC,125
|
Nexperia USA Inc. | IC BUF NON-INVERT 5.5V 8VSSOP | 3284 | $0.52 | |
NC7SP17L6X
|
ON Semiconductor | IC BUFF NONINVERT 3.6V 6MICROPAK | 7479 | $0.00 | |
74VHC125BQ,115
|
Nexperia USA Inc. | IC BUFF NON-INVERT 5.5V 14DHVQFN | 3000 | $0.21 | |
MM74HC126MX
|
ON Semiconductor | IC BUFFER NON-INVERT 6V 14SOIC | 6412 | $0.00 | |
74HC367D,653
|
Nexperia USA Inc. | IC BUFFER NON-INVERT 6V 16SO | 5984 | $0.57 | |
74LVT245D,118
|
Nexperia USA Inc. | IC TRANSCVR NON-INVERT 3.6V 20SO | 6000 | $0.24 | |
SN74LV245ADWR
|
Texas Instruments | IC TXRX NON-INVERT 5.5V 20SOIC | 2172 | $0.00 | |
|
74ABT245D,623
|
Nexperia USA Inc. | IC TRANSCVR NON-INVERT 5.5V 20SO | 2000 | $0.25 | |

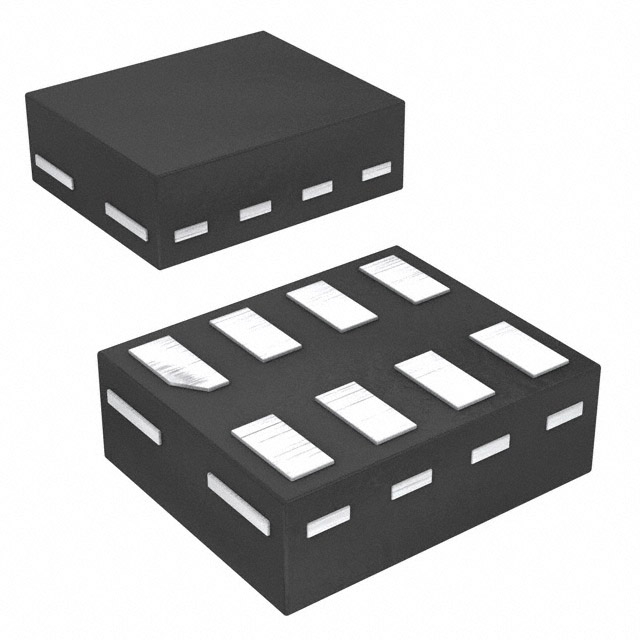

74LVC2G125GN,115
|
Nexperia USA Inc. | IC BUFFER NON-INVERT 5.5V 8XSON | 25448 | $0.81 | |
74LVC827APW,118
|
Nexperia USA Inc. | IC BUF NON-INVERT 3.6V 24TSSOP | 16008 | $0.00 |
