Wireless Charging Coils
Wireless charging coils generate an alternating electromagnetic field used to inductively transfer energy to other coils positioned parallel and in close proximity. The energy is used to charge batteries or run the device receiving the energy. The coils may be designed as receivers, transmitters or dual purpose having single or multiple coils and multiple layers of windings. They are rated by their inductance, self resonant frequency, saturation current and Q factor at a given frequency.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

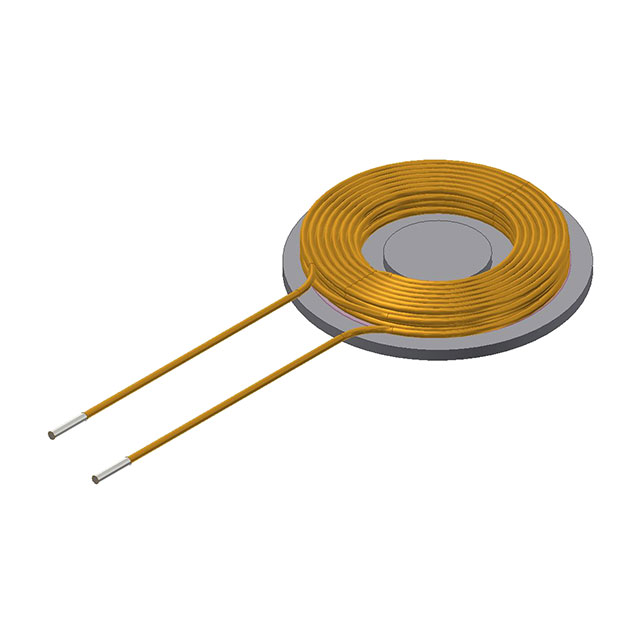

WR111180-49F5-G
|
TDK Corporation | RX 1 COIL 3 LYR 31.8UH | 221 | $5.52 | |

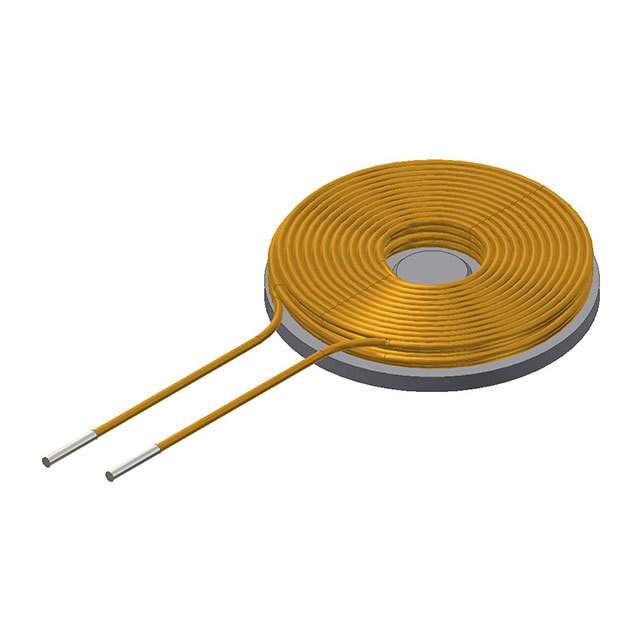

WR222230-26M8-G
|
TDK Corporation | RX 1 COIL 2 LYR 27UH | 678 | $5.34 | |

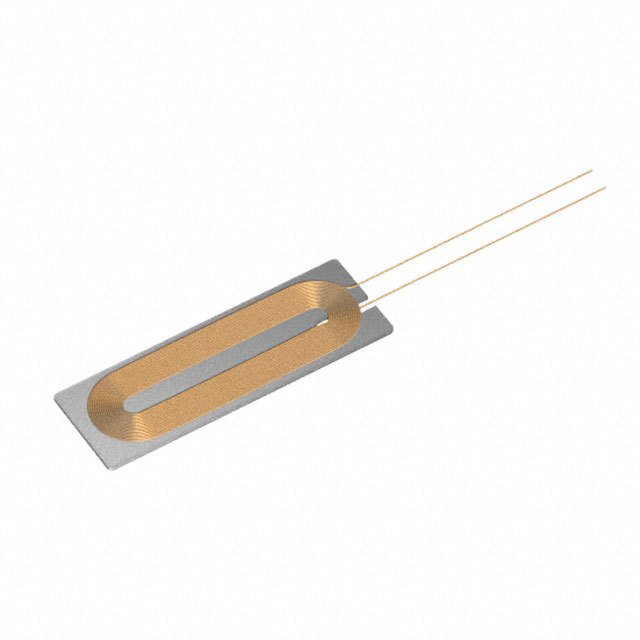

WT202080-28F2-G
|
TDK Corporation | TX 1 COIL 4 LYR 20.9UH | 156 | $5.31 | |

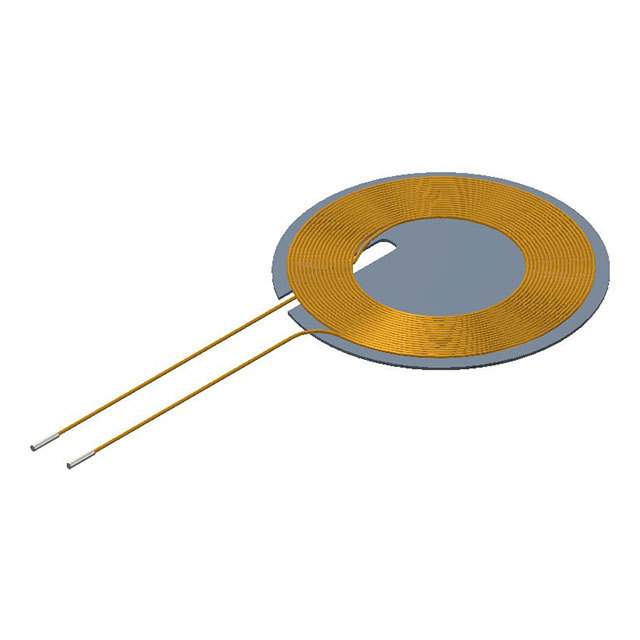

WR301025-19M8-G
|
TDK Corporation | RX 1 COIL 2 LYR 12.8UH | 133 | $5.28 | |
WR151580-48F2-G
|
TDK Corporation | RX 1 COIL 4 LYR 27.1UH | 267 | $5.08 | |
WT202012-15F2-ID
|
TDK Corporation | TX 1 COIL 2 LYR 6.2UH | 510 | $4.11 | |
WT151512-22F2-ID
|
TDK Corporation | TX 1 COIL 2 LYR 6.8UH | 216 | $3.90 | |
WR202020-18M8-G
|
TDK Corporation | RX 1 COIL, 1 LYR 9.9UH | 537 | $3.79 | |

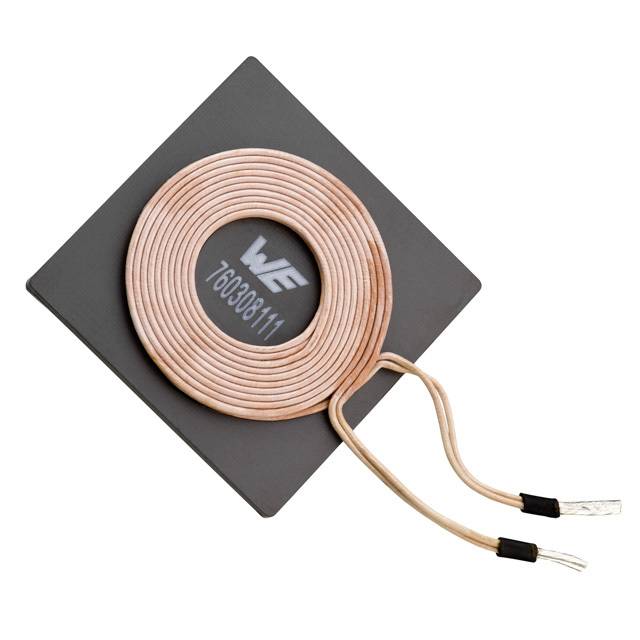

760308111
|
Wurth Electronics Inc. | TX 1 COIL 1 LAYER 6.3UH 13A | 750 | $12.76 | |
760308101103
|
Wurth Electronics Inc. | TX 1 COIL 1 LAYER 6.5UH 3A | 1022 | $11.40 |
