Power Driver Modules
Power driver modules provide the physical containment for power components, usually IGBTs and MOSFETs in a half bridge or one-, two- or three-phase configurations. Power semiconductors or dies are soldered or sintered on a substrate that carries the power semiconductors and provides electrical and thermal contact and electrical insulation where needed. Power modules provide a higher power density and are in many cases more reliable and easier to cool.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
STGIPS10C60
|
STMicroelectronics | MOD IPM SLLIMM 10A 600V 25SDIP | 132 | $11.15 | |
FNB40560
|
ON Semiconductor | MOD SPM 600V 5A SPM26-AA | 1 | $11.03 | |
STIPN1M50-H
|
STMicroelectronics | SLLIMM-NANO SMALL LOW-LOSS INTEL | 4 | $6.55 | |
|
STGIPS30C60
|
STMicroelectronics | IGBT IPM MODULE 30A 600V SDIP-25 | 0 | $25.53 | |
|
STGIPS15C60-H
|
STMicroelectronics | MOD IGBT SLLIMM 15A 600V 25SDIP | 0 | $13.44 | |
|
STGIPS10C60-H
|
STMicroelectronics | MOD IPM SLLIMM 10A 600V 25SDIP | 14 | $11.15 | |

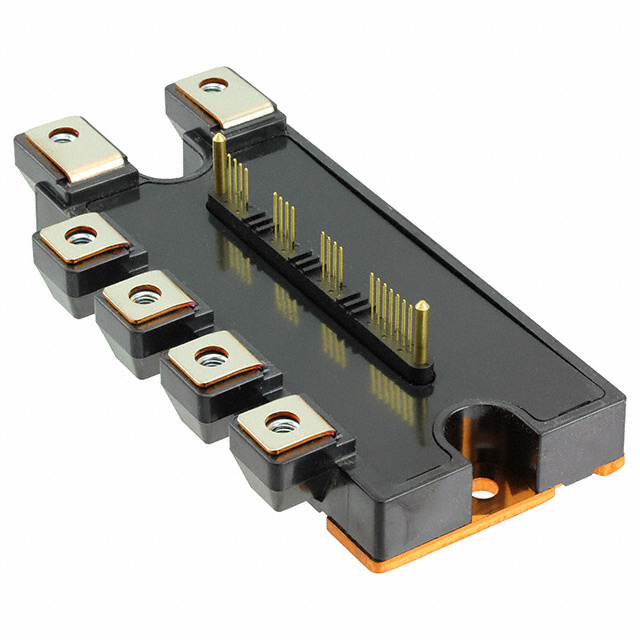

PM100RL1A120
|
Powerex, Inc. | MOD IPM 7-PAC L1 100A 1200V | 6 | $386.30 | |
PM50RL1A060
|
Powerex, Inc. | MOD IPM 7-PAC L1 50A 600V | 5 | $170.59 | |
|
IXIDM1403_1505_M
|
IXYS | POWER MODULE | 20 | $78.67 | |

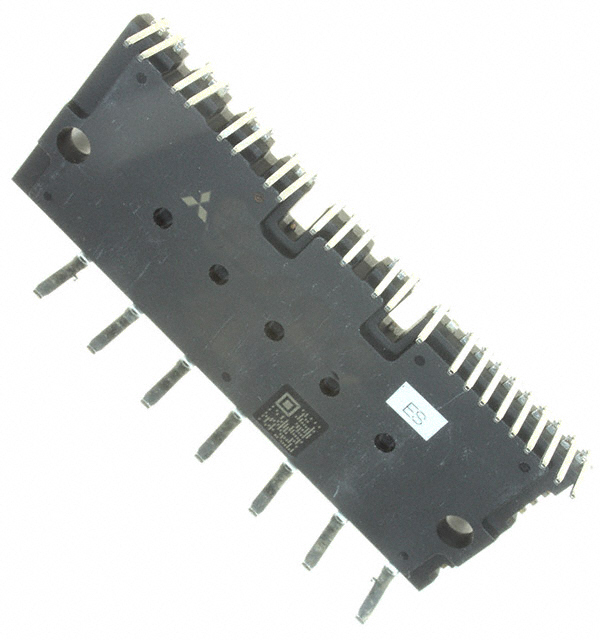

PS22A76
|
Powerex, Inc. | MOD IPM 1200V 25A LARGE DIP | 36 | $75.72 |
