Zener Diode Arrays
A Zener diode allows current to flow not only from its anode to its cathode, but also in the reverse direction when its Zener voltage is reached. They are used as voltage references and to regulate the voltage across small circuits. Zener diode networks or arrays are devices of two or more diodes in a single surface mount package. The diodes may be isolated from each other or connected in a common anode or common cathode circuit type.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
AZ23C3V3-E3-18
|
Vishay / Semiconductor - Diodes Division | DIODE ZENER 3.3V 300MW SOT23 | 0 | $0.04 | |
AZ23C6V2-TP
|
Micro Commercial Co | DIODE ZENER ARRAY 6.2V SOT23 | 0 | $0.06 | |
|
DZ23C15-TP
|
Micro Commercial Co | DIODE ZENER ARRAY 15V SOT23 | 2986 | $0.00 | |
STZ6.2NFHT146
|
ROHM Semiconductor | ZENER ARRAYS FOR TERMINAL PROTEC | 2980 | $0.00 | |
DZ23C30-7-F
|
Diodes Incorporated | DIODE ZENER ARRAY 30V SOT23-3 | 0 | $0.07 | |
|
AZ23C47-7-F
|
Diodes Incorporated | DIODE ZENER ARRAY 47V SOT23-3 | 0 | $0.07 | |
|
AZ23C2V7-7-F
|
Diodes Incorporated | DIODE ZENER ARRAY 2.7V SOT23-3 | 1397 | $0.40 | |

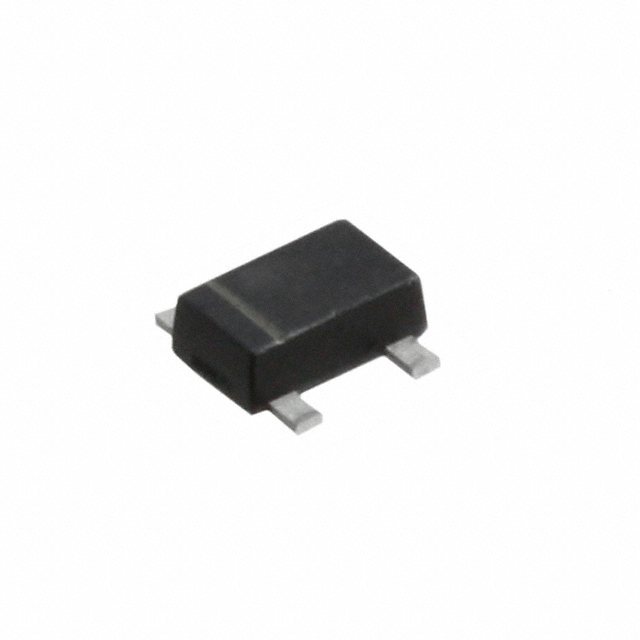

DZ4J110K0R
|
Panasonic Electronic Components | DIODE ZENER ARRAY 11V SMINI4 | 2736 | $0.48 | |
|
DZ4J024K0R
|
Panasonic Electronic Components | DIODE ZENER ARRAY 2.4V SMINI4 | 1633 | $0.00 | |
MMBZ5236BS-7
|
Diodes Incorporated | DIODE ZENER ARRAY 7.5V SOT363 | 857 | $0.15 |
