Single Zener Diodes
Zener diodes are designed for operation in a reverse-breakdown mode and are characterized according to their behavior when used in this fashion. Useful as a voltage reference or for voltage limiting purposes, they are also capable of functioning as a one-way valve for current flow in the manner of rectifier diodes, though their behavior in this mode is generally less ideal than that of purpose-built devices. Products within this family implement exactly one instance of this function per device package.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
1SMA4746 R3G
|
Taiwan Semiconductor Corporation | DIODE ZENER 18V 1.25W DO214AC | 1950 | $0.50 | |

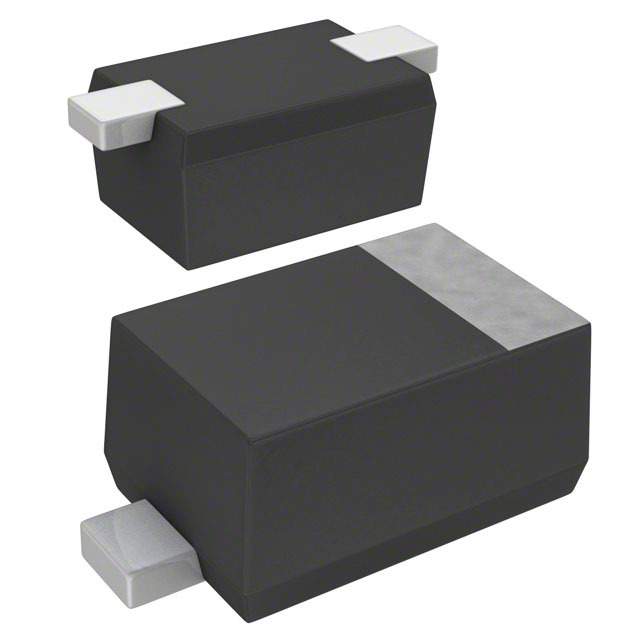

DZ2S03300L
|
Panasonic Electronic Components | DIODE ZENER 3.3V 150MW SSMINI2 | 6000 | $0.10 | |
KDZVTR22B
|
ROHM Semiconductor | DIODE ZENER 22V 1W PMDU | 3625 | $0.00 | |

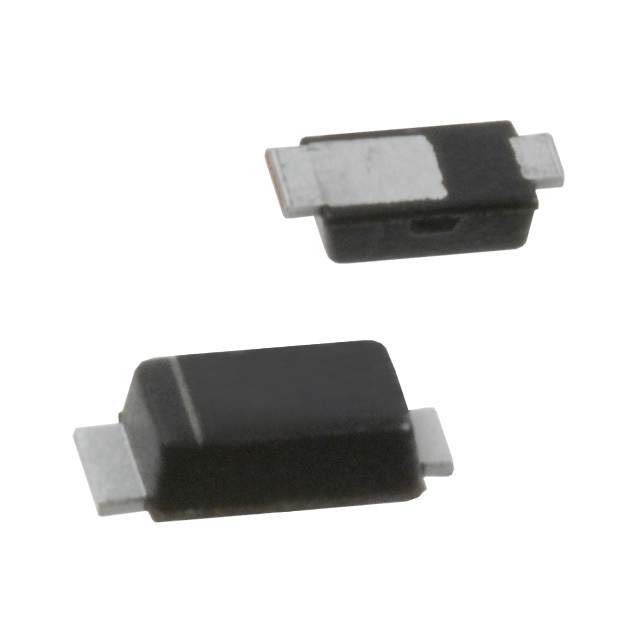

BZD27C15P RVG
|
Taiwan Semiconductor Corporation | DIODE ZENER 14.7V 1W SUB SMA | 5785 | $0.42 | |

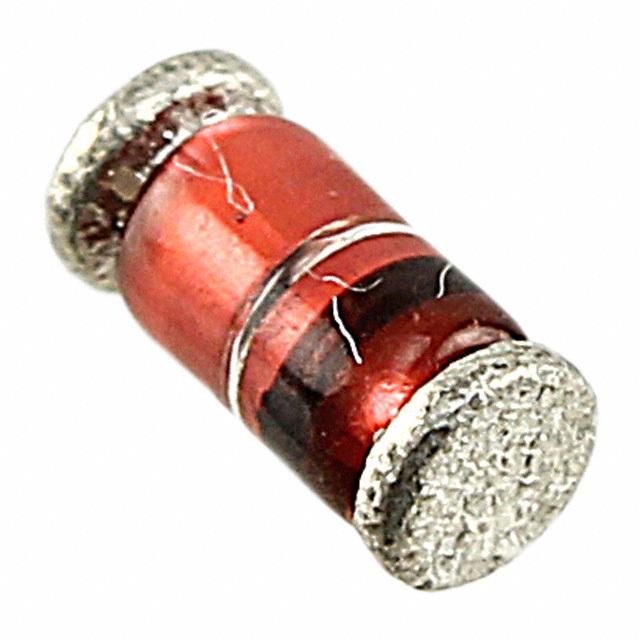

ZM4734A-GS08
|
Vishay / Semiconductor - Diodes Division | DIODE ZENER 5.6V 1W DO213AB | 13562 | $0.46 | |
|
ZM4738A-GS08
|
Vishay / Semiconductor - Diodes Division | DIODE ZENER 8.2V 1W DO213AB | 4952 | $0.00 | |
1SMB5925B-13
|
Diodes Incorporated | DIODE ZENER 10V 3W SMB | 9000 | $0.12 | |
BZX84-A11,215
|
Nexperia USA Inc. | DIODE ZENER 11V 250MW SOT23 | 3000 | $0.13 | |
|
BZX84-A16,215
|
Nexperia USA Inc. | DIODE ZENER 16V 250MW SOT23 | 14478 | $0.00 | |
PD3Z284C5V6-7
|
Diodes Incorporated | DIODE ZENER 5.6V POWERDI323 | 12064 | $0.00 |
