Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

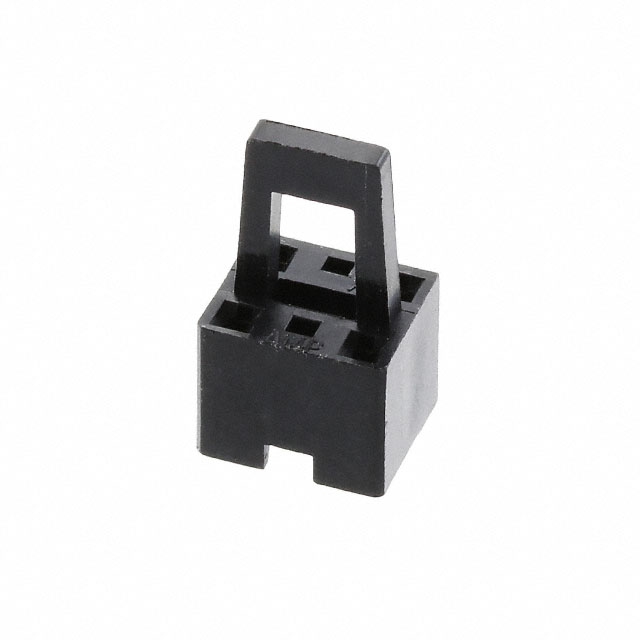

390102-1
|
TE Connectivity AMP Connectors | CONN SHUNT 4POS 2X2 OPEN TOP | 0 | $7.66 | |
BTMM-149-01-T-D
|
Samtec, Inc. | .020 SQ. RA POST ASSEMBLY | 0 | $7.61 | |
DF11-4DP-SP2(05)
|
Hirose Electric Co Ltd | CONN SHORTING JUMPER 4POS 2MM | 0 | $0.00 | |
|
66464-102
|
Amphenol ICC (FCI) | MINI JUMPER | 0 | $0.00 | |
|
69145-220
|
Amphenol ICC (FCI) | JUMPER LOW PRO DR MULTI | 0 | $0.00 | |
|
69145-316
|
Amphenol ICC (FCI) | JUMPER LOW PRO DR MULTI | 0 | $0.00 | |
|
69144-110LF
|
Amphenol ICC (FCI) | CONN SHUNT | 0 | $0.00 | |
|
69144-104LF
|
Amphenol ICC (FCI) | CONN SHUNT | 0 | $0.00 | |
|
DF3-SP
|
Hirose Electric Co Ltd | SHORTING JUMPER | 0 | $0.00 | |
|
D3081-46
|
Harwin Inc. | SHORTING LINK 1MM | 0 | $0.00 |
