Shunts, Jumpers
Shunts or Jumpers are designed to connect two pin contacts for an electrical connection that are separated by a specific distance or pitch. The types are Closed Top/Grip, Insulated, Non-Insulated, and Open Top/Grip with a pitch range from 0.050” (1.27mm) to 1.00” (25.40mm) and the number of positions ranging from 1 (1 x 1) to 48 (1 x 24) or 4 (2 x 2) to 26 (2 x 13).
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
800-002-SP2R001
|
NorComp Inc. | SHUNT 2MM STD PROFILE .177" GOLD | 0 | $0.00 | |

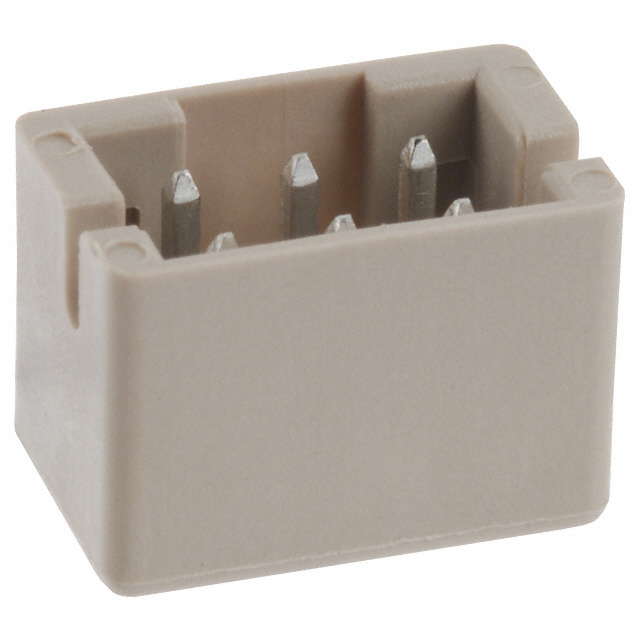

DF11-6DP-SP2
|
Hirose Electric Co Ltd | CONN SHORTING JUMPER 6POS 2MM | 0 | $0.00 | |

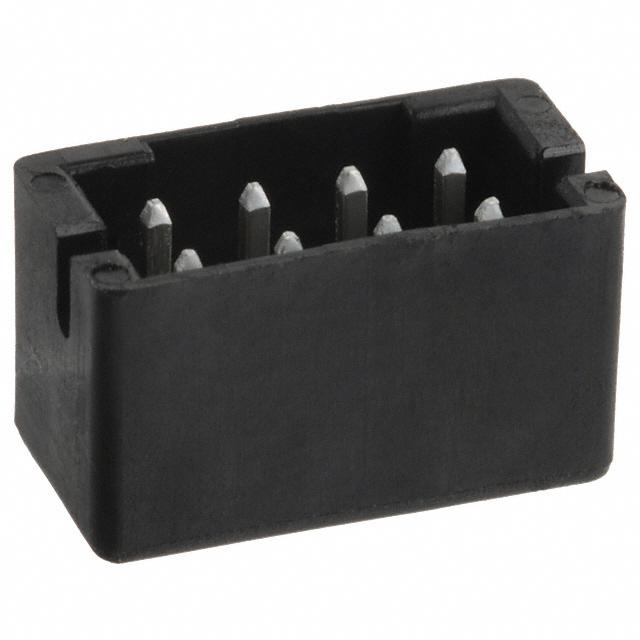

DF11-8DP-SP1
|
Hirose Electric Co Ltd | CONN SHORTING JUMPER 8POS 2MM | 0 | $0.00 | |

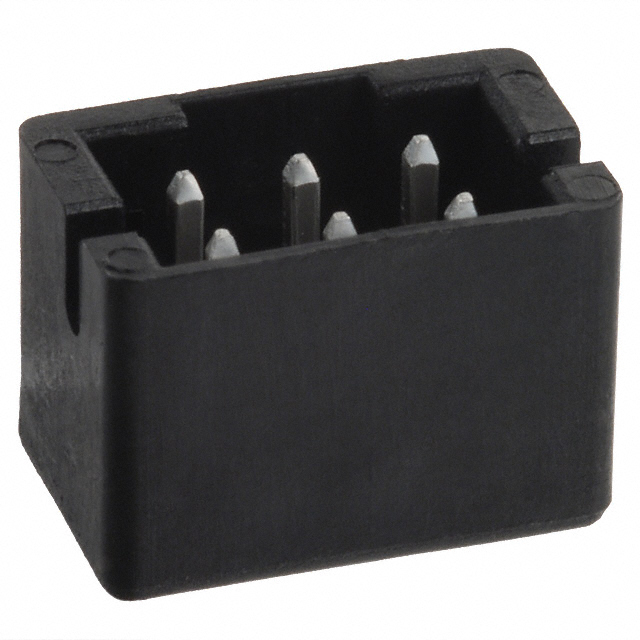

DF11-6DP-SP1
|
Hirose Electric Co Ltd | CONN SHORTING JUMPER 6POS 2MM | 0 | $0.00 | |

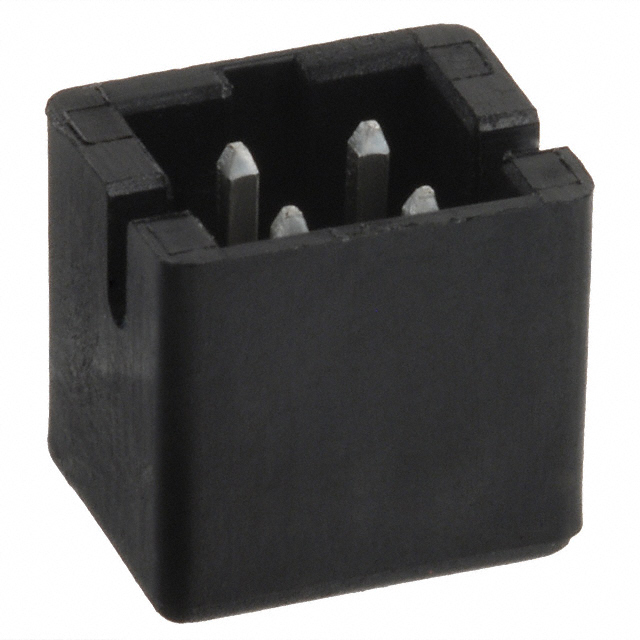

DF11-4DP-SP1
|
Hirose Electric Co Ltd | CONN SHORTING JUMPER 4POS 2MM | 0 | $0.00 | |
|
999-11-230-92-000000
|
Mill-Max Manufacturing Corp. | JUMPER INSULATED MALE .300" BLUE | 0 | $0.00 | |
|
999-11-220-11-000000
|
Mill-Max Manufacturing Corp. | JUMPER INSULATED MALE .200" RED | 0 | $0.00 | |
|
999-11-110-90-000000
|
Mill-Max Manufacturing Corp. | JUMPER NON-INSULATED MALE .100" | 0 | $0.00 | |
|
800-002-SP2-001
|
NorComp Inc. | SHUNT 2MM STD PROFILE .177" GOLD | 0 | $0.00 | |
|
800-002-LP1-006
|
NorComp Inc. | SHUNT 2MM LOW PROFILE .075" TIN | 0 | $0.00 |
