Board Spacers, Stackers (Board to Board)
Rectangular header type connectors are designed to connect circuits on one PCB to circuits on another providing insulation and board spacing. They are selected by pitch (distance between pin centers), stack height, and the number of positions and rows. They are typically soldered in place, with surface mount and through-hole versions available in gold, tin and tin-lead options.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
DW-02-07-T-S-200
|
Samtec, Inc. | CONN HDR 2POS 0.1 STACK T/H TIN | 2159 | $0.18 | |

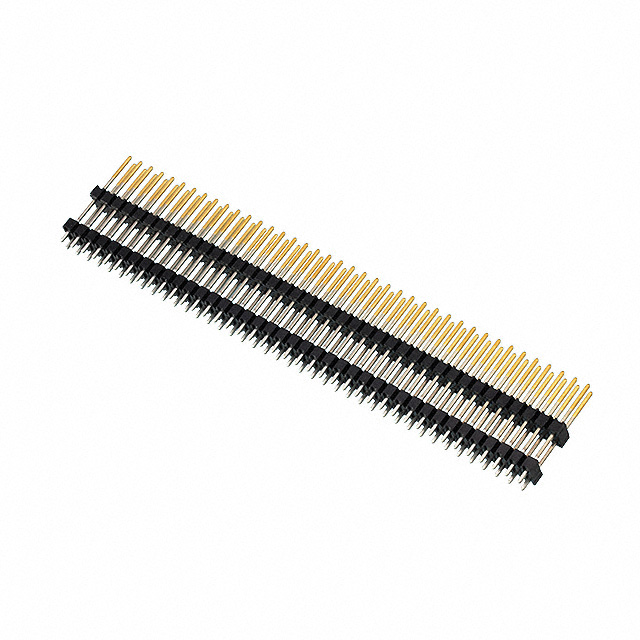

4-146492-0
|
TE Connectivity AMP Connectors | CONN HDR 80POS 0.1 STACK T/H | 643 | $19.16 | |

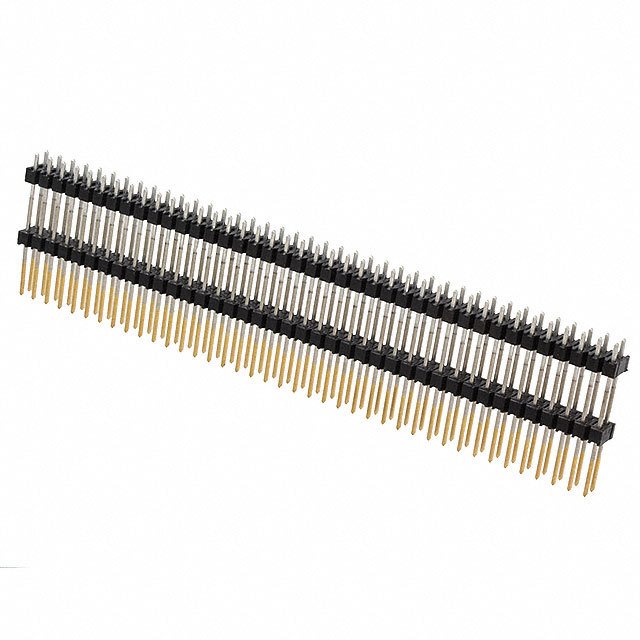

4-146494-0
|
TE Connectivity AMP Connectors | CONN HDR 80POS 0.1 STACK T/H | 149 | $19.16 | |

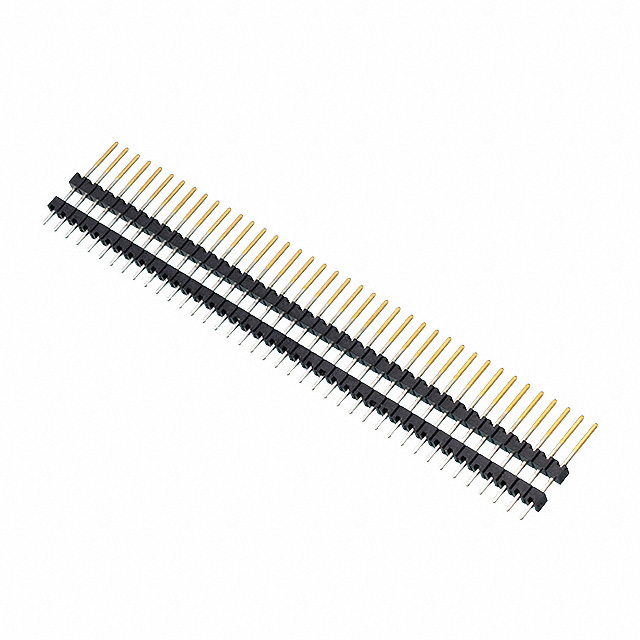

9-146458-0
|
TE Connectivity AMP Connectors | CONN HDR 40POS 0.1 STACK T/H TIN | 267 | $9.71 | |
1-829315-0
|
TE Connectivity AMP Connectors | CONN HDR 20POS 0.1 STACK T/H | 4913 | $2.81 | |

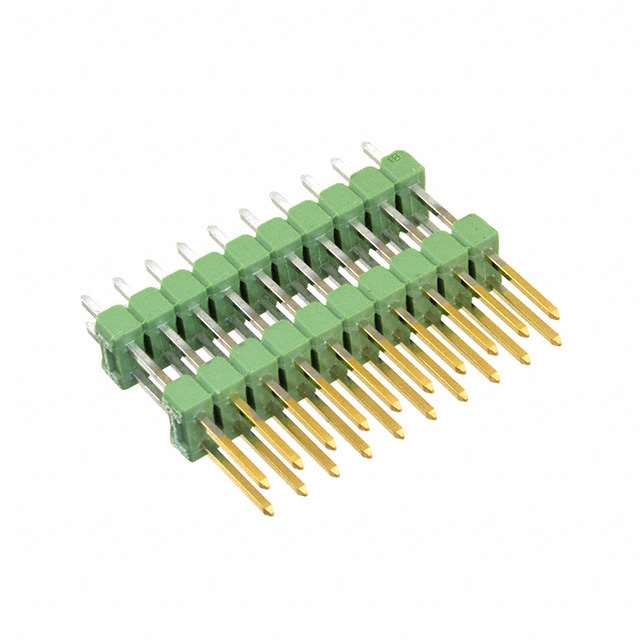

DW-10-10-T-S-450
|
Samtec, Inc. | CONN HDR 10POS 0.1 STACK T/H TIN | 1017 | $0.82 | |
9-146462-0
|
TE Connectivity AMP Connectors | CONN HDR 40POS 0.1 STACK T/H | 176 | $15.70 | |
|
DW-03-09-T-S-488
|
Samtec, Inc. | CONN HDR 3POS 0.1 STACK T/H TIN | 0 | $0.30 | |
|
DW-05-10-F-D-480
|
Samtec, Inc. | CONN HDR 10POS 0.1 STACK T/H | 0 | $1.08 | |
|
FW-02-03-G-D-255-125
|
Samtec, Inc. | CONN HDR 4POS 0.05 STACK SMD | 0 | $1.37 |
