Edgeboard Connectors
Card edge or edgeboard connectors are a style of connector system in which (typically) a pattern of exposed copper regions at the periphery of a printed circuit board constitutes one-half of a mating connector pair. A common use case being the connection of accessory cards such as graphics accelerators to computer motherboards in desktop PC applications, they offer a relatively low-cost, high density interconnect option for applications where durability is not a primary concern.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
6651866-1
|
TE Connectivity AMP Connectors | CONN,BLD,MC | 0 | $1.76 | |

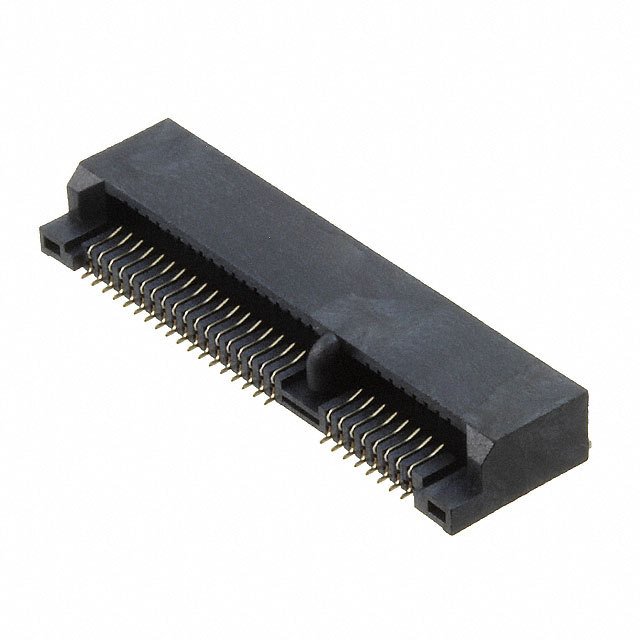

2041119-1
|
TE Connectivity AMP Connectors | CONN PCI EXP MINI FEMALE 52POS | 7724 | $1.38 | |

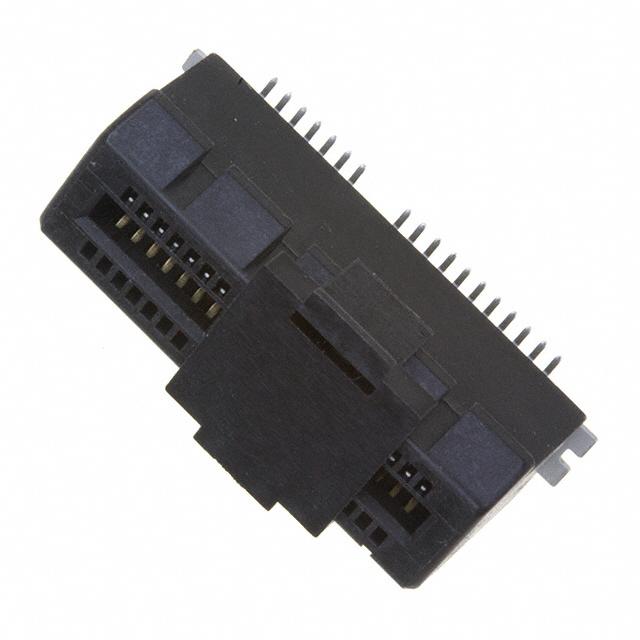

10061913-110PLF
|
Amphenol ICC (FCI) | CONN PCI EXP FEMALE 36POS 0.039 | 4512 | $0.00 | |
SPD08-060-RB-TR
|
3M | CONN EDGE DUAL FMALE 60POS 0.031 | 1356 | $8.52 | |

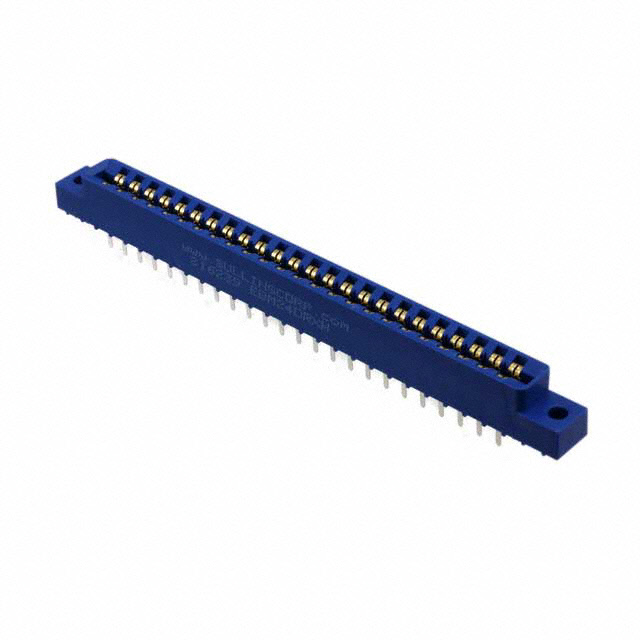

EBM24DRXH
|
Sullins Connector Solutions | CONN EDGE DUAL FMALE 48POS 0.156 | 115 | $5.95 | |
|
MEC8-125-02-L-D-RA1
|
Samtec, Inc. | CONN EDGE DUAL FMALE 50POS 0.031 | 256 | $7.78 | |
FMC06DRYH
|
Sullins Connector Solutions | CONN EDGE DUAL FMALE 12POS 0.100 | 185 | $15.72 | |
3666-0000
|
3M | CONN EDGE DUAL FMALE 60POS 0.100 | 205 | $15.10 | |

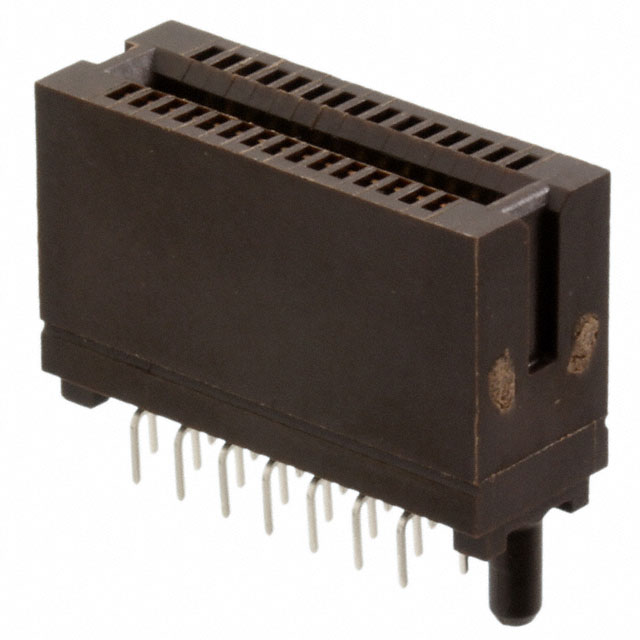

5650712-1
|
TE Connectivity AMP Connectors | CONN EDGE DUAL FMALE 30POS 0.050 | 814 | $2.34 | |
CWR-170-20-0203
|
CW Industries | CONN EDGE DUAL FMALE 20POS 0.100 | 291 | $3.78 |
