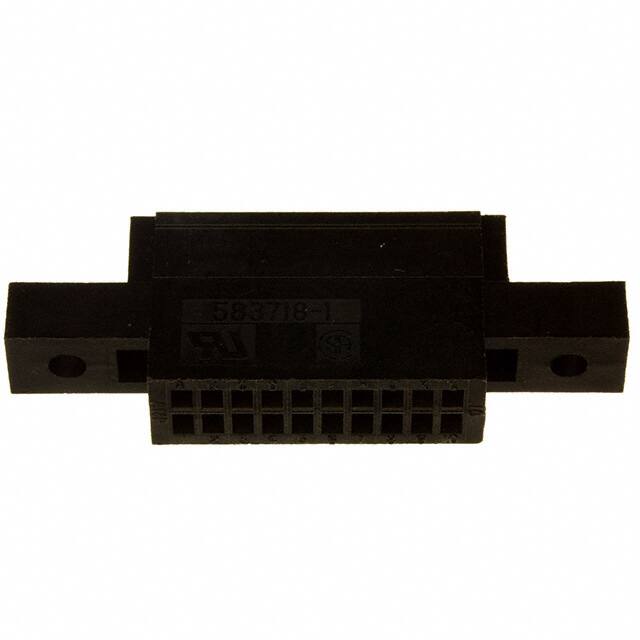

Card Edge Connector Housings
Card Edge Connector Housings are contactless connectors designed to be used with card edge circuit boards. The housings have positions ranging from 2 to 350, accommodate card thicknesses from 0.047” to 0.093”, and have pitch dimensions from 0.024” (0.60 mm) to 0.312” (7.92 mm). They come in both free-hanging and panel mount versions.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
3-583717-9
|
TE Connectivity AMP Connectors | CONN CARDEDGE HSG 16POS .100 BLK | 0 | $2.19 | |
|
582387-9
|
TE Connectivity AMP Connectors | CONN CARDEDGE HSG 36POS .156 NAT | 0 | $5.06 | |
|
583297-1
|
TE Connectivity AMP Connectors | CONN CARDEDGE HSG 12POS .156 BLK | 0 | $8.24 | |
|
1-582557-1
|
TE Connectivity Aerospace Defense and Marine | CONN CARDEDGE HSG 44POS .100 BLU | 0 | $135.85 | |
|
583726-1
|
TE Connectivity AMP Connectors | CONN CARDEDGE HSG 50POS .156 BLK | 0 | $0.00 | |
|
0009017091
|
Molex | CONN CARDEDGE HSG 9POS 0.156 NAT | 0 | $0.00 | |
|
1703111-2
|
TE Connectivity AMP Connectors | CONN CARDEDGE HSG 12POS .197 NAT | 0 | $0.00 | |
|
0009017241
|
Molex | CONN CARDEDGE HSG 24POS .156 NAT | 0 | $0.00 | |
|
0009017224
|
Molex | CONN CARDEDGE HSG 22POS .156 NAT | 0 | $0.00 | |
|
0009017222
|
Molex | CONN CARDEDGE HSG 22POS .156 NAT | 0 | $0.00 |
