PTC Resettable Fuses
PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
RL3006-50-60-25-PT4
|
Amphenol Advanced Sensors | PTC RESET FUSE 25V RADIAL | 42 | $2.37 | |
B59301P1120A062
|
EPCOS (TDK) | PTC RESET FUSE 24V 310MA 4032 | 520 | $2.29 | |
MINISMDC110F/16-2
|
Littelfuse Inc. | PTC RESET FUSE 16V 1.1A 1812 | 0 | $0.21 | |
PTCCL05H630HBE
|
Vishay BC Components | PTC RESET FUSE 265V 63MA RADIAL | 6 | $1.11 | |

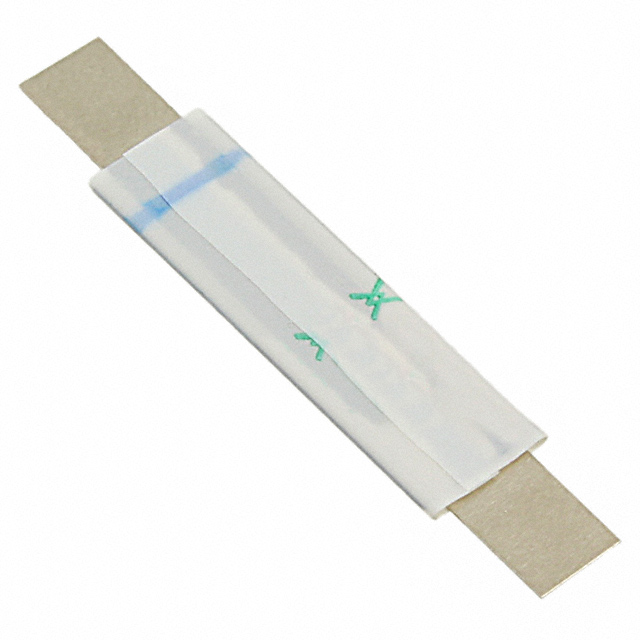

LR4-550F
|
Littelfuse Inc. | PTC RESET FUSE 20V 5.5A STRAP | 82 | $1.09 | |

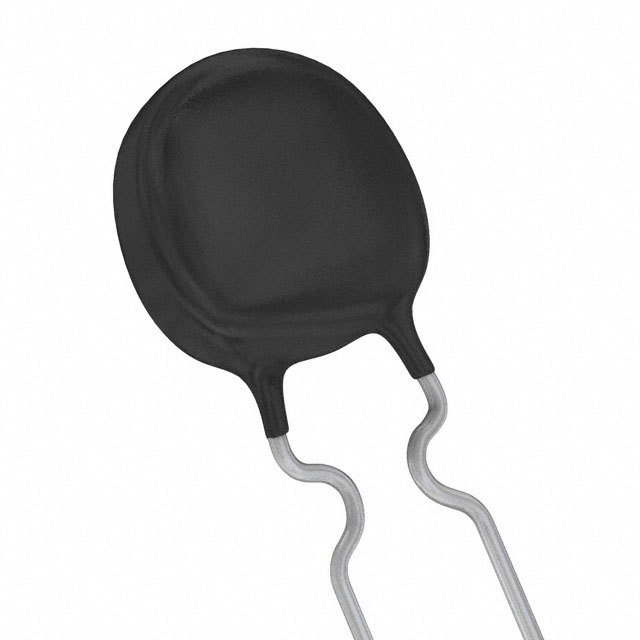

RUEF500-1
|
Littelfuse Inc. | PTC RESET FUSE 30V 5A RADIAL | 0 | $0.77 | |
|
SMD1210B020TF
|
Yageo | PPTC SMD 1210, 30V 0.2A, REEL 7" | 0 | $0.00 | |
|
SMD1812B050TF
|
Yageo | PPTC SMD 1812, 15V 0.5A, REEL 7" | 0 | $0.05 | |
|
SMD0805B050TF
|
Yageo | PPTC SMD 0805, 6V 0.5A, REEL 7" | 0 | $0.00 | |
|
SMD2920B100TF
|
Yageo | PPTC SMD 2920, 33V 1.1A, REEL 7" | 0 | $0.09 |
