PTC Resettable Fuses
PTC Resettable Fuses are designed to stop current flow when it exceeds a certain limit (overcurrent protection). The Fuses work by increasing its resistance as its temperature rises due to the current increase. The trip current ranges from 14 mA to 50 A with the Time to trip ranging from 8 ms to 90 s. PTC = Positive Temperature Coefficient.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
PTCCL05H650FBE
|
Vishay BC Components | THERMISTOR PTC 115 OHM 20% RAD | 0 | $0.44 | |
|
B59407A0115A062
|
EPCOS (TDK) | THERMISTOR PTC 470 OHM 25% 0402 | 0 | $0.26 | |
MF-MSMF110/16-2
|
Bourns, Inc. | PTC RESET FUSE 16V 1.1A 1812 | 19782 | $0.50 | |

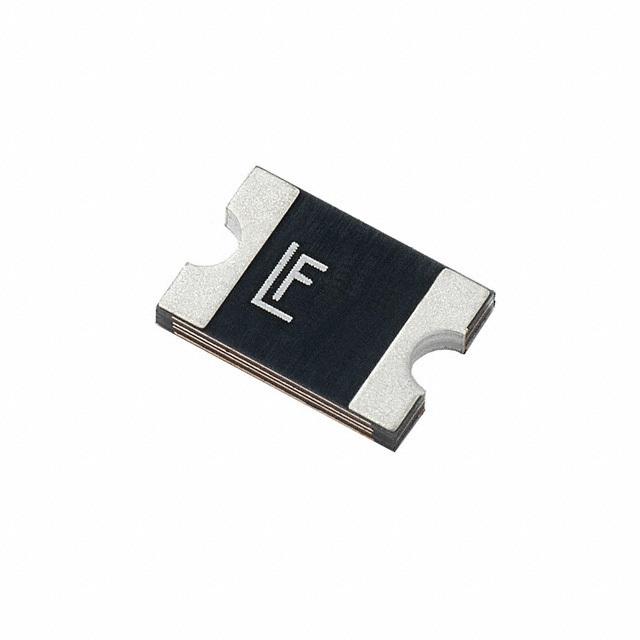

1812L125/16DR
|
Littelfuse Inc. | PTC RESET FUSE 16V 1.25A 1812 | 24860 | $0.53 | |
SMDC300F/24-2
|
Littelfuse Inc. | PTC RESET FUSE 24V 3A 2920 | 4571 | $0.81 | |
2920L200DR
|
Littelfuse Inc. | PTC RESET FUSE 15V 2A 2920 | 11805 | $0.00 | |
|
2920L200/24DR
|
Littelfuse Inc. | PTC RESET FUSE 24V 2A 2920 | 15587 | $0.87 | |

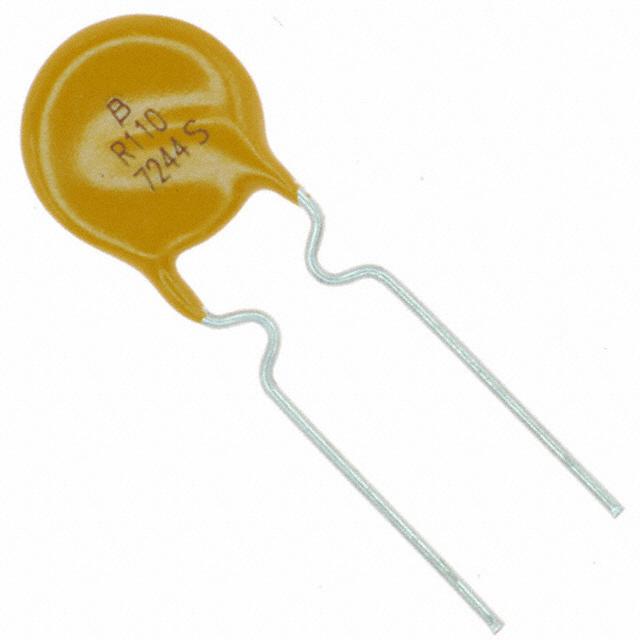

MF-R110
|
Bourns, Inc. | PTC RESET FUSE 30V 1.1A RADIAL | 2858 | $0.39 | |
|
1812L020/60DR
|
Littelfuse Inc. | PTC RESET FUSE 60V 200MA 1812 | 2711 | $0.00 | |

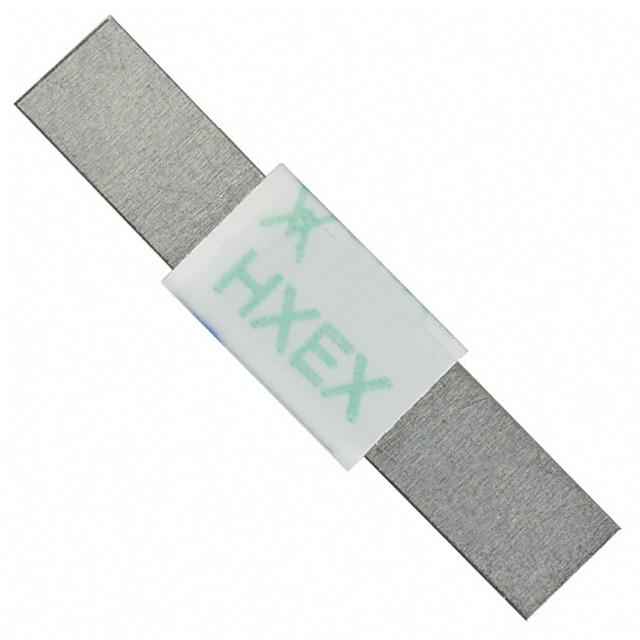

SRP120F
|
Littelfuse Inc. | PTC RESET FUSE 15V 1.2A STRAP | 11216 | $0.64 |
