Electric Double Layer Capacitors (EDLC), Supercapacitors
Electric double layer capacitors and supercapacitors are a class of electrolytic (polarized) capacitors that offer exceptionally high capacitance values in relation to their physical size and low voltage ratings; individual devices have ratings of a few volts at most, though products incorporating numerous series-connected devices to achieve higher voltage ratings are available. Exhibiting losses that are generally high by standards of other electrolytic capacitors yet low in comparison to electrochemical cells, they are often used as alternatives to the latter in applications requiring high cycle counts or power density.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
MAL219690106E3
|
Vishay BC Components | CAPACITOR 90F -20% +80% 1.4V T/H | 24 | $8.26 | |
EEC-HW0D306
|
Panasonic Electronic Components | CAP 30F -20% +40% 2.3V T/H | 25 | $6.24 | |
JUWT1126MPD
|
Nichicon | CAP 12F 20% 2.7V T/H | 0 | $5.31 | |
SCCV40B506SRB
|
AVX Corporation | CAP 50F -10% +30% 2.7V T/H | 0 | $5.25 | |
FS0H224ZF
|
KEMET | CAP 220MF -20% +80% 5.5V T/H | 8 | $3.57 | |

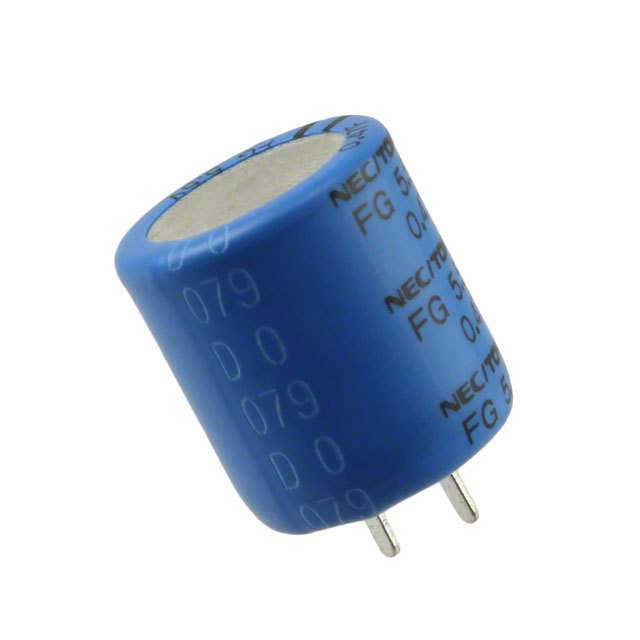

FG0H474ZF
|
KEMET | CAP 470MF -20% +80% 5.5V T/H | 0 | $3.09 | |
DX-5R5H473U
|
Elna America | CAP 47MF -20% +80% 5.5V T/H | 0 | $1.94 | |
JUMT1474MED
|
Nichicon | CAP 470MF 20% 2.7V T/H | 0 | $1.36 | |

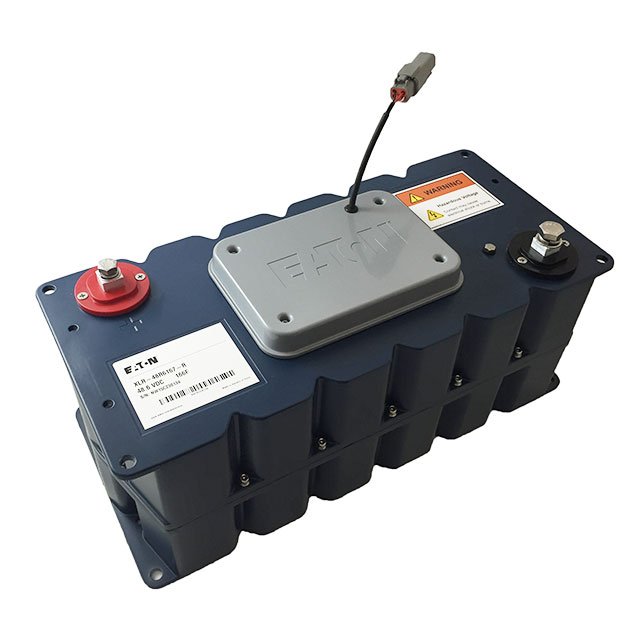

XLR-48R6167-R
|
Eaton-Electronics Division | CAP 166F 0% +20% 48.6V CHAS MNT | 1 | $1606.00 | |
BMOD0083 P048 B01
|
Maxwell Technologies, Inc. | CAP 83F 48V CHASSIS MOUNT | 1 | $1568.55 |
