Electric Double Layer Capacitors (EDLC), Supercapacitors
Electric double layer capacitors and supercapacitors are a class of electrolytic (polarized) capacitors that offer exceptionally high capacitance values in relation to their physical size and low voltage ratings; individual devices have ratings of a few volts at most, though products incorporating numerous series-connected devices to achieve higher voltage ratings are available. Exhibiting losses that are generally high by standards of other electrolytic capacitors yet low in comparison to electrochemical cells, they are often used as alternatives to the latter in applications requiring high cycle counts or power density.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

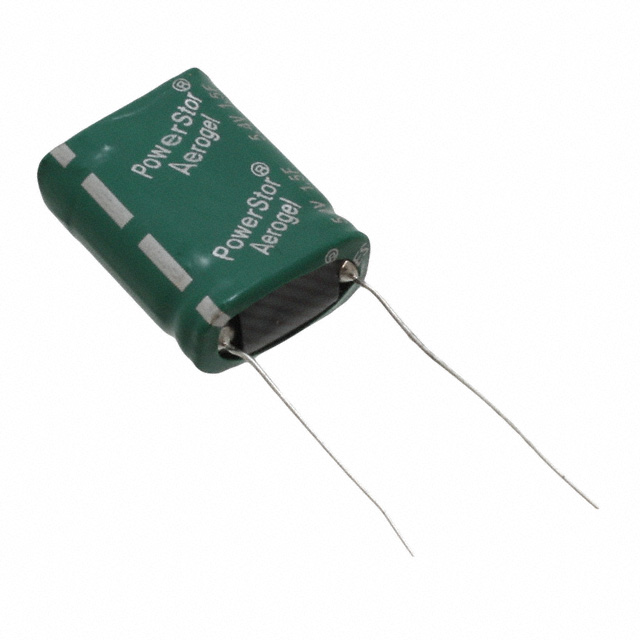

PHV-5R4V505-R
|
Eaton-Electronics Division | CAP 5F -10% +30% 5.4V T/H | 185 | $15.97 | |

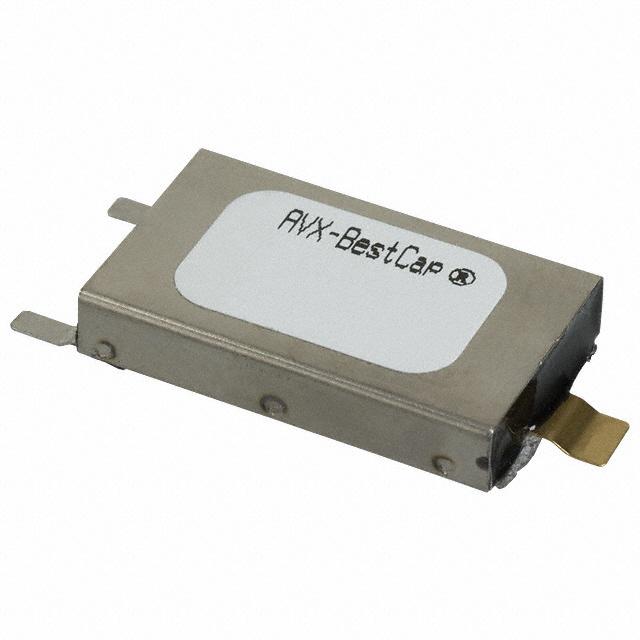

BZ01CA223ZSB
|
AVX Corporation | CAP 22MF -20% +80% 12V SMD | 1751 | $15.00 | |
BCAP0150 P270 T07
|
Maxwell Technologies, Inc. | CAP 150F 2.7V THROUGH HOLE | 13418 | $15.02 | |
XV3560-2R7407-R
|
Eaton-Electronics Division | CAP 400F -5% +10% 2.7V T/H | 3407 | $12.29 | |
BZ05CA103ZSB
|
AVX Corporation | CAP 10MF -20% +80% 12V SMD | 1586 | $12.00 | |

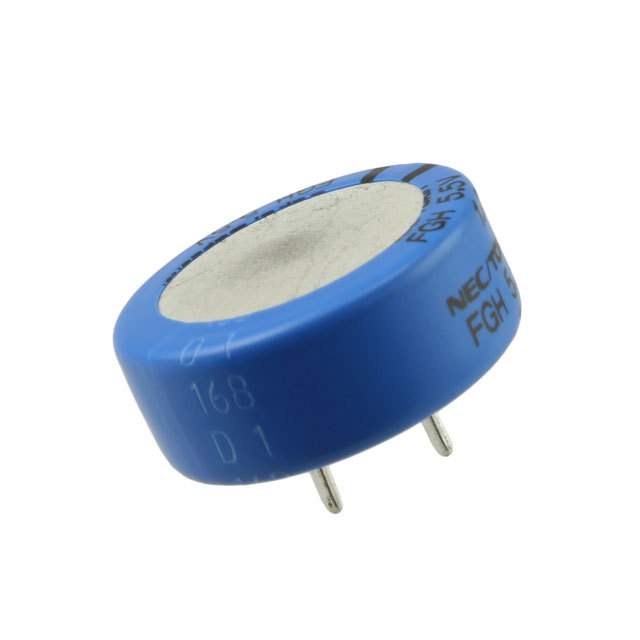

FGR0H225ZF
|
KEMET | CAP 2.2F -20% +80% 5.5V T/H | 180 | $10.86 | |

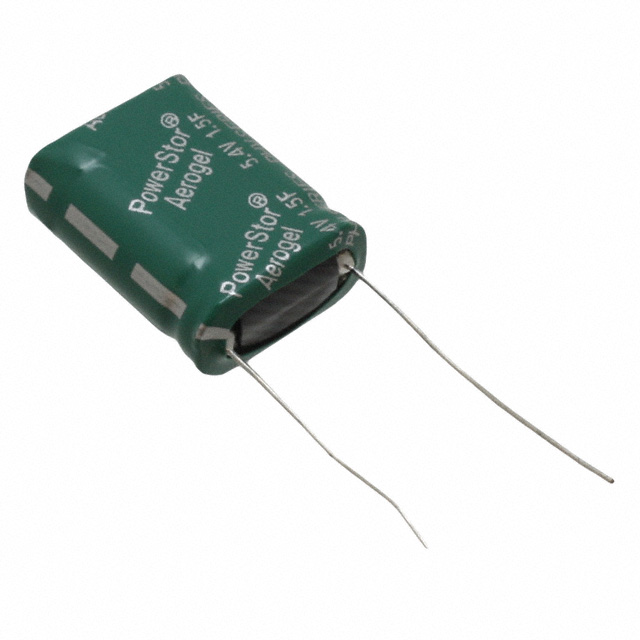

PHV-5R4H155-R
|
Eaton-Electronics Division | CAP 1.5F -10% +30% 5.4V T/H | 6407 | $10.65 | |

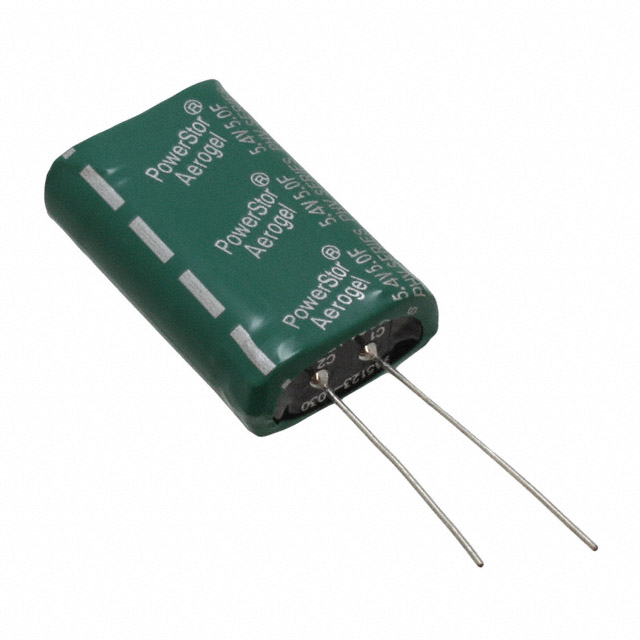

PHB-5R0V505-R
|
Eaton-Electronics Division | CAP 5F -10% +30% 5V T/H | 1054 | $10.55 | |
PHV-5R4V155-R
|
Eaton-Electronics Division | CAP 1.5F -10% +30% 5.4V T/H | 2200 | $10.24 | |
|
BZ055B153ZSB
|
AVX Corporation | CAP 15MF -20% +80% 5.5V SMD | 738 | $10.13 |
