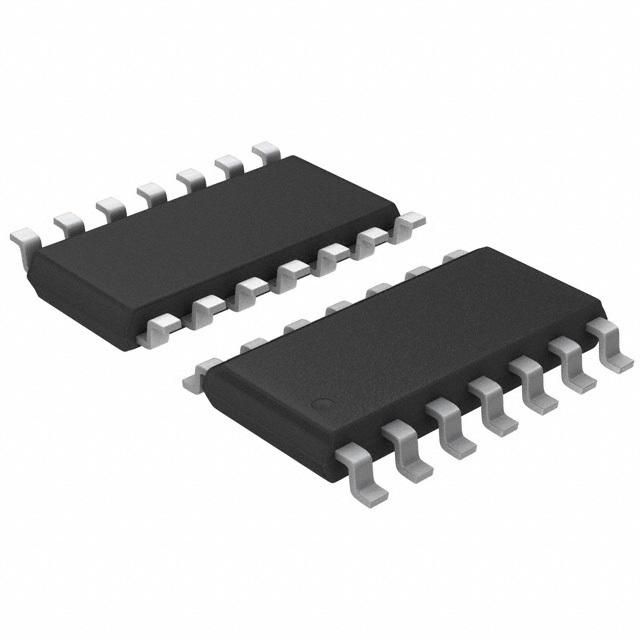

Texas Instruments SN74LS03NSR
- Manufacturer
- Texas Instruments
- Model
- SN74LS03NSR
- Datasheet
- SN74LS03NSR PDF
- Description
- IC GATE NAND 4CH 2-INP 14SOP
- Availability
- IN STOCK
Stock: 5105
Product Detail
| Attribute Name | Attribute Value |
|---|---|
| Part Status | Active |
| Current - Output High, Low | 400µA, 8mA |
| Mounting Type | Surface Mount |
| Max Propagation Delay @ V, Max CL | 15ns @ 5V, 15pF |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Base Part Number | 74LS20 |
| Number of Inputs | 4 |
| Voltage - Supply | 4.75V ~ 5.25V |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Series | 74LS |
| Number of Circuits | 2 |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Packaging | Digi-Reel® |
| Supplier Device Package | 14-SOP |
| Logic Type | NAND Gate |
| Current - Quiescent (Max) | 800µA |
