[Electronics] Change the mini Tesla coil with the waste power box
By TENCO in
This is a distributed-parameter high-frequency resonant transformer that can obtain high-frequency voltages of millions of volts. The principle of a Tesla coil is to use a transformer to boost the normal voltage and then discharge the device from the discharge terminal via a two-pole coil. Simply described,it is an artificial lightning generator. There are tesla coil enthusiasts around the world who make all kinds of devices.

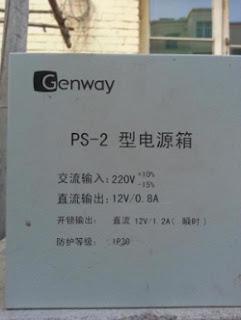

power box
side
Made of pure steel, very strong
Seeing the SGTC I used to do, I was so confused that I thought of making a case with this power box.
Sgtc is a spark gap Tesla coil, the circuit diagram is as follows
Start making
My homemade electric drill
First make a hole in the lid of the box, then put on the switch

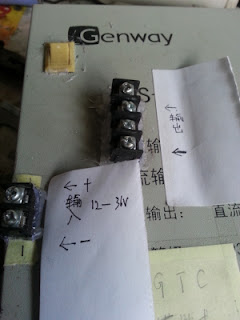

Playing 4 eyes, install the terminal block

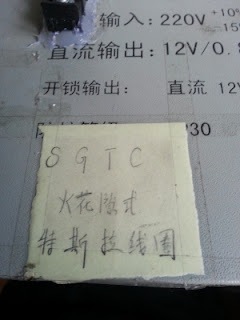

Do some decoration

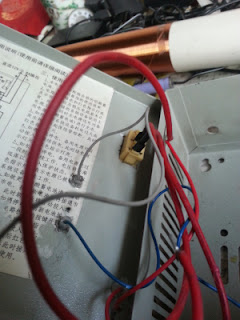

At this time, the inside will be like this
Sorry, so messy
Now start connecting circuits, this is my zvs
Venue using irfz44

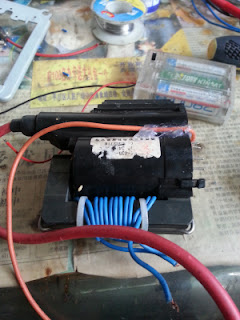

High voltage package (Sony)
Pull arc effect (12V4A input)

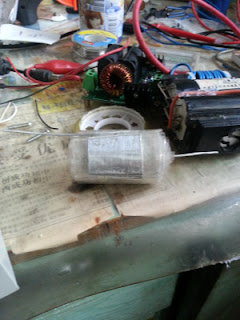

This is my high voltage capacitor made of foil tape.
Firearm
Assembled and placed in the box

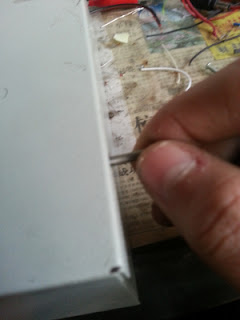

Cover and twist the screws
Next round is the first time debut

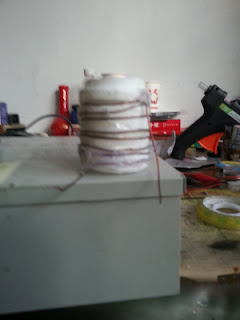

primary
Secondary
Another big secondary that has not been circumvented
connection

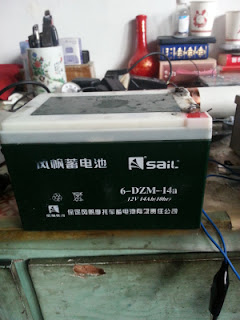

power supply

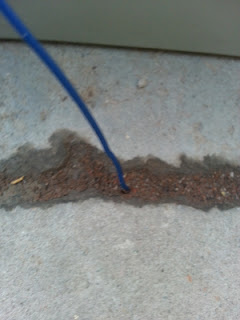

Ground wire
Discharge diagram
too bright

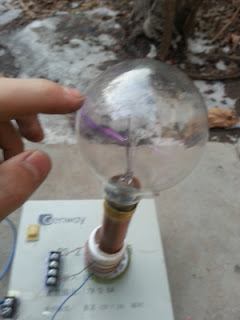

Try moving in the dark
The effect is good, oh yeah
