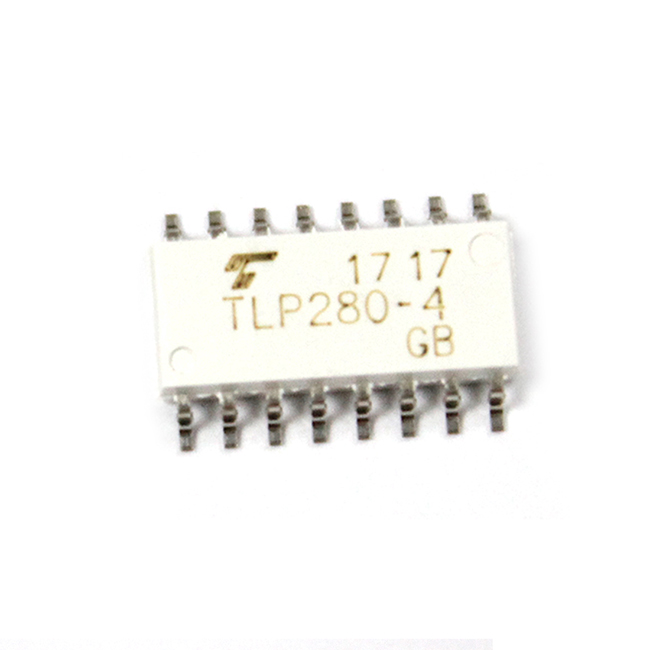

TLP280-4

Price $ 2.00
1+ $ 2.00
10+ $ 0.00
100+ $ 0.00
500+ $ 0.00
1000+ $ 0.00
Manufacturer Toshiba
PDF File Download
Quantity
pcs (Total : 9852 pcs)
Manufacturer:Toshiba Semiconductor and Storage
Product Category:Optoisolators - Transistor, Photovoltaic Output
Series:-
Packaging:Tube
Package-Case:16-SOIC (0.173", 4.40mm Width)
Input-Type:AC, DC
Operating-Temperature:-55°C ~ 100°C
Mounting-Type:Surface Mount
Output-Type:Transistor
Number-of-Channels:4
Supplier-Device-Package:16-SOP
Current-Output-Channel:50mA
Voltage-Output-Max:80V
Current-DC-Forward-If-Max:50mA
Voltage-Isolation:2500Vrms
Voltage-Forward-Vf-Typ:1.15V
Current-Transfer-Ratio-Min:100% @ 5mA
Current-Transfer-Ratio-Max:600% @ 5mA
Turn-On-Turn-Off-Time-Typ:3μs, 3μs
Rise-Fall-Time-Typ:2μs, 3μs
Vce-Saturation-Max:400mV
