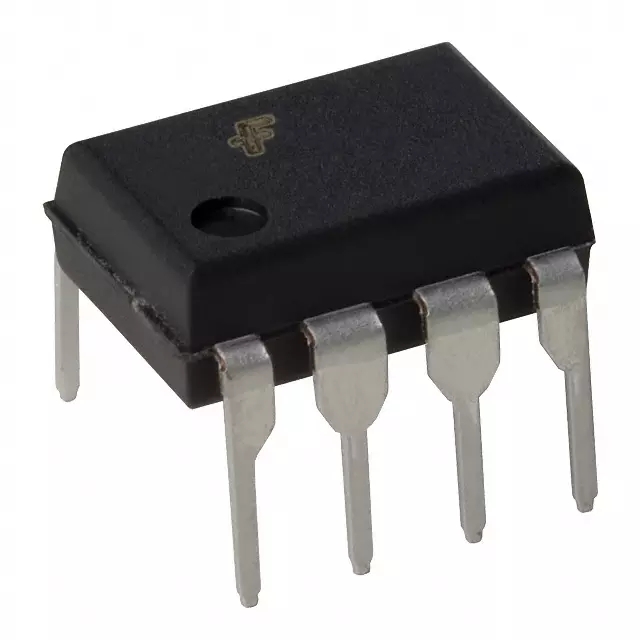

HCPL-2631

Price
1+ $ 0.00
10+ $ 0.00
100+ $ 0.00
500+ $ 0.00
1000+ $ 0.00
Manufacturer Broadcom Limited
PDF File Download
Quantity
pcs (Total : 9852 pcs)
Manufacturer: Broadcom Limited
Product Category: Optoisolators - Logic Output
Series: -
Packaging: Tube
Package-Case: 8-DIP (0.300", 7.62mm)
Input-Type: DC
Operating-Temperature: -40°C ~ 85°C
Mounting-Type: Through Hole
Output-Type: Open Collector, Schottky Clamped
Number-of-Channels: 2
Voltage-Supply: 4.5 V ~ 5.5 V
Supplier-Device-Package: 8-DIP
Data-Rate: 10MBd
Current-Output-Channel: 50mA
Current-DC-Forward-If-Max: 15mA
Voltage-Isolation: 3750Vrms
Voltage-Forward-Vf-Typ: 1.5V
Rise-Fall-Time-Typ: 24ns, 10ns
Inputs-Side-1-Side-2: 2/0
Common-Mode-Transient-Immunity-Min: 10kV/μs
Propagation-Delay-tpLH-tpHL-Max: 100ns, 100ns
Pd-Power-Dissipation: 60 mW
Maximum-Operating-Temperature: + 85 C
Minimum-Operating-Temperature: - 40 C
Vf-Forward-Voltage: 1.5 V
Isolation-Voltage: 3750 Vrms
Output-Current: 50 mA
Fall-Time: 10 ns
Rise-Time: 24 ns
Vr-Reverse-Voltage: 5 V
If-Forward-Current: 10 mA
Package-Case: PDIP-8 Gull Wing
Maximum-Collector-Current: 50 mA
